Sporlan® 402335

Description

The Catch-All shell utilizes an exclusive filter-within-a-filter construction. The new internal assembly, when used with Sporlan molded cores, provides maximum water capacity, excellent acid removal characteristics, the ability to remove products of lubricant decomposition, and outstanding filtration. The optional replaceable secondary filter offers unsurpassed filtration efficiencies without compromising the Catch-All's ability to hold a large amount of foreign material. The assembly is designed so the cores remove larger sized particles while the secondary filter removes microscopic particles. This unique construction aggressively filters particles circulating in a refrigerant system. This design is Especially advantageous when commissioning a larger system. The shell design offers flexibility. The new internal assembly can be used with or without the secondary filter. The type of filtration needed depends upon the system requirements or application. Using the assembly without the secondary filter offers the same time tested, field-proven, filtration characteristics expected in a Catch-All Filter-Drier. The internal construction is designed to improve ease of assembly. The molded cores simply slide over the center tube, followed by spacer plates (if applicable). The outlet plate is fastened to the assembly by a wing screw. With the addition of a spring, the resulting assembly is easy to install and remove. The seal gasket prevents solid contaminants from bypassing the filter. The assembly is held tight against the gasket by a spring. O-rings are used with the secondary filter to provide a tight seal. The internal parts are plated steel - no plastic parts. The bolt and nut attachment of the endplate allows for simple, trouble-free installation. The nuts lock against the side of the shell for ease in tightening. Other designs, using cap screws threaded into the flange ring, run the risk of twisting off the head of the screw making removal difficult. Copper fittings are excellent for fast easy soldering. Fittings are pre-sized for proper fit, and suitable for use with soft solder, silver solder, Sil-Fos, or PhosCopper. The fittings are brazed to the shell with a high temperature brazing alloy so they never loosen during the brazing operation on the job. A complete line of fitting sizes are available with solder connections from 1/2 to 4-1/8 in ODF and pipe connections from 1/2 to 2 in. Heavy steel shells provide high bursting strength and are listed by Underwriters Laboratories Inc. The shell exterior uses an epoxy powder coating to prevent corrosion even under the most adverse conditions.

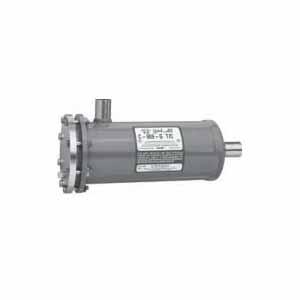

Sporlan® Catch-All® Liquid Line Filter Dryer, Model: C-9611-G, ODF, 650 psi, 96 cu-in, R-12, R-134A, R-22, R-404A, R-407C, R-502, R-507, Steel, Epoxy Powder-Coated, 6 in Dia x 15.15 in L

Features

• The famous molded porous core for maximum contaminant removal
• The core cannot swell, powder or pack-assuring ease of installation and removal
• The bolt and nut attachment of the end plate provides simple trouble-free installation
• The internal construction gives a one-piece assembly and assures proper core alignment
• A complete line of fitting sizes-all with copper fitting
• No plastic parts are used all internal parts are plated steel
• A corrosion-resistant powder paint protects the exterior of the shell
