Sporlan® 163773

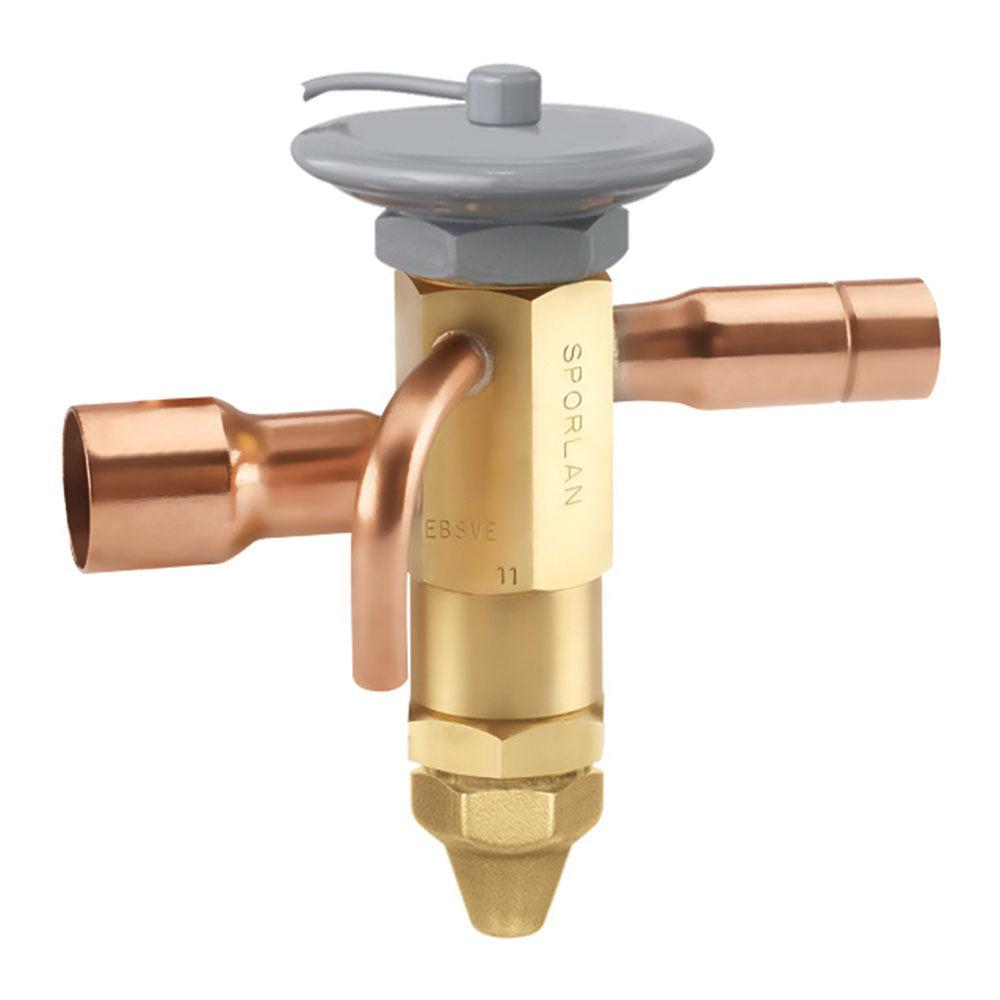

Sporlan® 163773 Thermostatic Expansion Valve, 5/8 x 7/8 in, ODF Solder, R-22 (Green) Refrigerant, 11 ton Nominal, Brass
Brand: Sporlan®
Item No: EBSVE-11-GA
Sign In for Availability
Description
The Sporlan® Type EBS balance ported thermostatic expansion valves have a brass bar stock body with extended ODF connections, adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation. Depending on its capacity, makes it suitable for bi-directional operation. For over 80 Year the Sporlan® Division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners, and original equipment manufacturers.
Sporlan® Thermostatic Expansion Valve, 5/8 x 7/8 in Nominal, ODF Solder Connection, 11 ton Nominal Capacity, R-22 (Green) Refrigerant, External Equalizer, 1/4 in ODF Equalizer Size, 83 Element, 5 ft Capillary Length, Type GA Charge Type, 450 psi, 12 Mesh Permanent Strainer Type, Brass Body, Brass Seat, 5.22 in H
Features
- Knife edge joint
- Stainless steel pin
- Stainless steel pushrod
Specifications
|
Body Material |
Brass |
|
Capillary Length |
5 ft |
|
Charge Type |
Type GA |
|
Connection Type |
ODF Solder |
|
Dimensions |
5.22 in H |
|
Element Size |
83 |
|
Equalizer Size |
1/4 in ODF |
|
Equalizer Type |
External |
|
Nominal Capacity |
11 ton |
|
Nominal Size |
5/8 x 7/8 in |
|
Pressure Rating |
450 psi |
|
Refrigerant Type |
R-22 (Green) |
|
Seat Material |
Brass |
|
Strainer Type |
12 Mesh Permanent |
