Sporlan® 109897

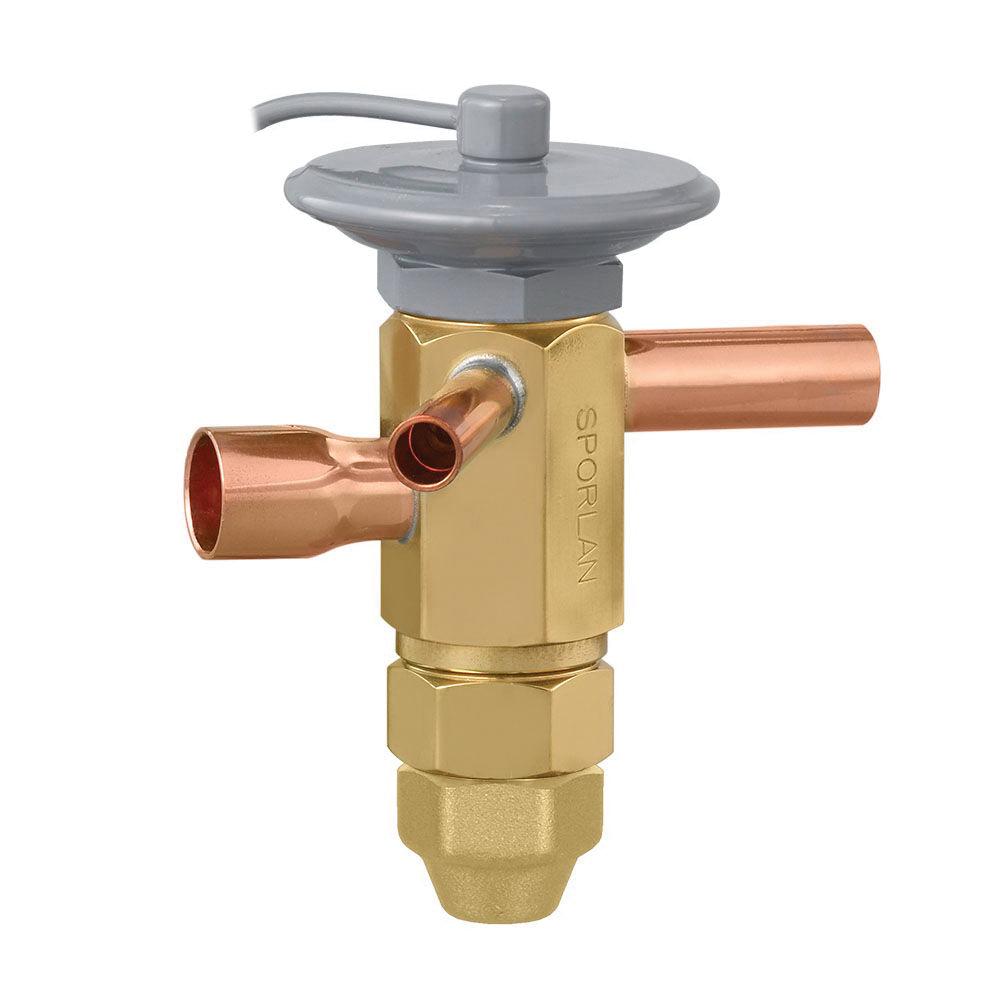

Sporlan® 109897 Thermostatic Expansion Valve, 1/4 x 1/2 in, ODF Solder, R-404A (Orange) Refrigerant, 0.25 ton Nominal
Brand: Sporlan®
Item No: EFS-1/4-C
Sign In for Availability
Description
The Sporlan® type F-EF thermostatic expansion valves have a brass bar stock body. The F valve has flare fittings and the EF valve has extended ODF connections. Both valve types are available with adjustable superheat, long-lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. For over 80 Year the Sporlan® division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners and original equipment manufacturers.
Sporlan® Thermostatic Expansion Valve, 1/4 x 1/2 in Nominal, ODF Solder Connection, 0.25 ton Nominal Capacity, R-404A (Orange) Refrigerant, Internal Equalizer, 43 Element, 30 in Capillary Length, Type C Charge Type, 450 psi, 50 Mesh Removable Strainer Type, Brass Body, Brass Seat, 3.76 in H
Features
- Inlet strainer
- These valves are designed for small refrigeration systems such as refrigerated cases, coolers and freezers where space is limited and an external adjustment is desired
- Knife edge joint
- Stainless steel pin
- Brass pin carrier
- Stainless steel pushrod
Specifications
|
Body Material |
Brass |
|
Capillary Length |
30 in |
|
Charge Type |
Type C |
|
Connection Type |
ODF Solder |
|
Dimensions |
3.76 in H |
|
Element Size |
43 |
|
Equalizer Type |
Internal |
|
Nominal Capacity |
0.25 ton |
|
Nominal Size |
1/4 x 1/2 in |
|
Pressure Rating |
450 psi |
|
Refrigerant Type |
R-404A (Orange) |
|
Seat Material |
Brass |
|
Strainer Type |
50 Mesh Removable |
