Sporlan® 164368

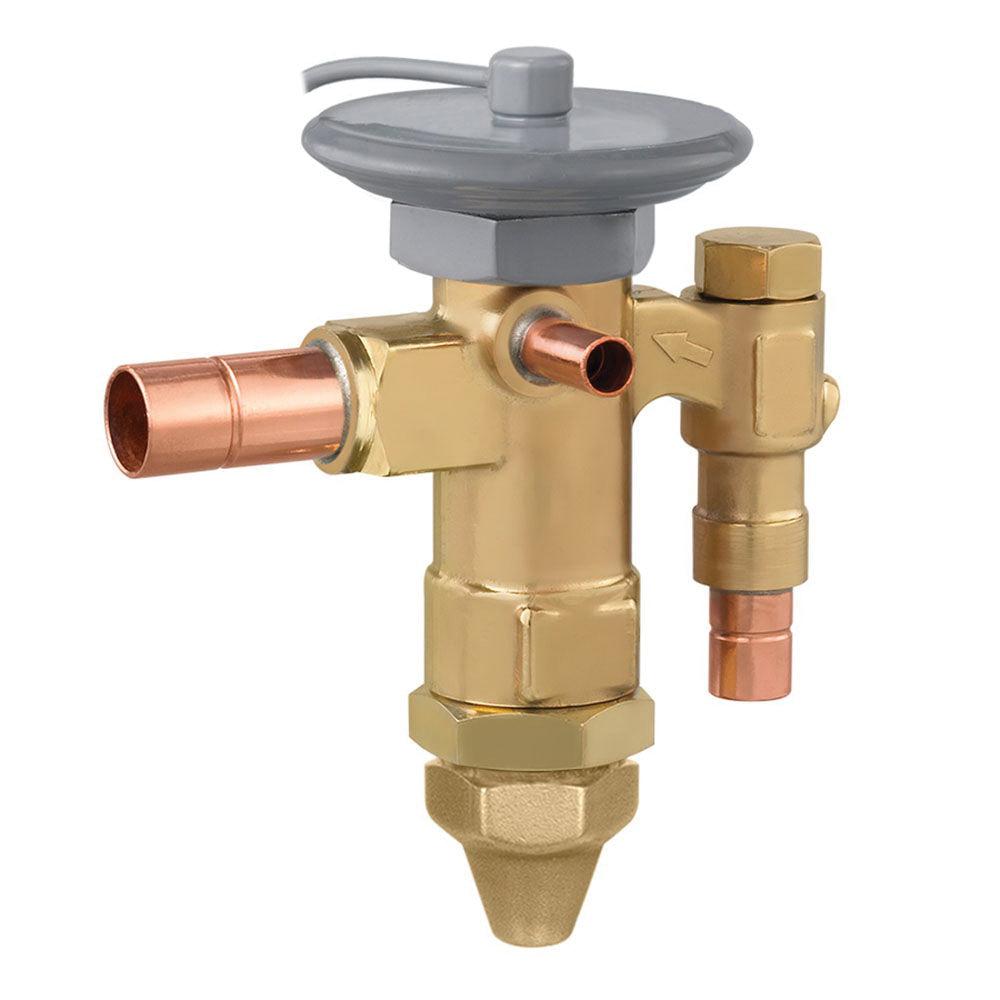

Sporlan® 164368 Thermostatic Expansion Valve, 3/8 x 1/2 in, ODF Solder, R-404A (Orange) Refrigerant, 0.5 ton Nominal
Brand: Sporlan®
Item No: EGSE-1/2-C
Sign In for Availability
Description
Sporlan® type EG valve is a forged brass body, externally adjustable valve with ODF solder connections. The thermostatic element is replaceable and the inlet connection has a removable 100 mesh strainer which can be cleaned and/or replaced without removing the valve from the line. This valve is designed for small refrigeration systems such as refrigerated cases, coolers and freezers. In addition to refrigeration applications, the externally equalized type EG valve may be used for small capacity air conditioning and heat pump units.
Sporlan® Thermostatic Expansion Valve, 3/8 x 1/2 in Nominal, ODF Solder Connection, 0.5 ton Nominal Capacity, R-404A (Orange) Refrigerant, External Equalizer, 1/4 in ODF Equalizer Size, 53 Element, 5 ft Capillary Length, Type C Charge Type, 450 psi, 100 Mesh Removable Strainer Type, Forged Brass Body, Brass Seat, 4.74 in H
Features
- Knife edge joint
- Stainless steel pin
- Brass pin carrier
- Stainless steel pushrod
Specifications
|
Body Material |
Forged Brass |
|
Capillary Length |
5 ft |
|
Charge Type |
Type C |
|
Connection Type |
ODF Solder |
|
Dimensions |
4.74 in H |
|
Element Size |
53 |
|
Equalizer Size |
1/4 in ODF |
|
Equalizer Type |
External |
|
Nominal Capacity |
0.5 ton |
|
Nominal Size |
3/8 x 1/2 in |
|
Pressure Rating |
450 psi |
|
Refrigerant Type |
R-404A (Orange) |
|
Seat Material |
Brass |
|
Strainer Type |
100 Mesh Removable |
