Sporlan® 904067

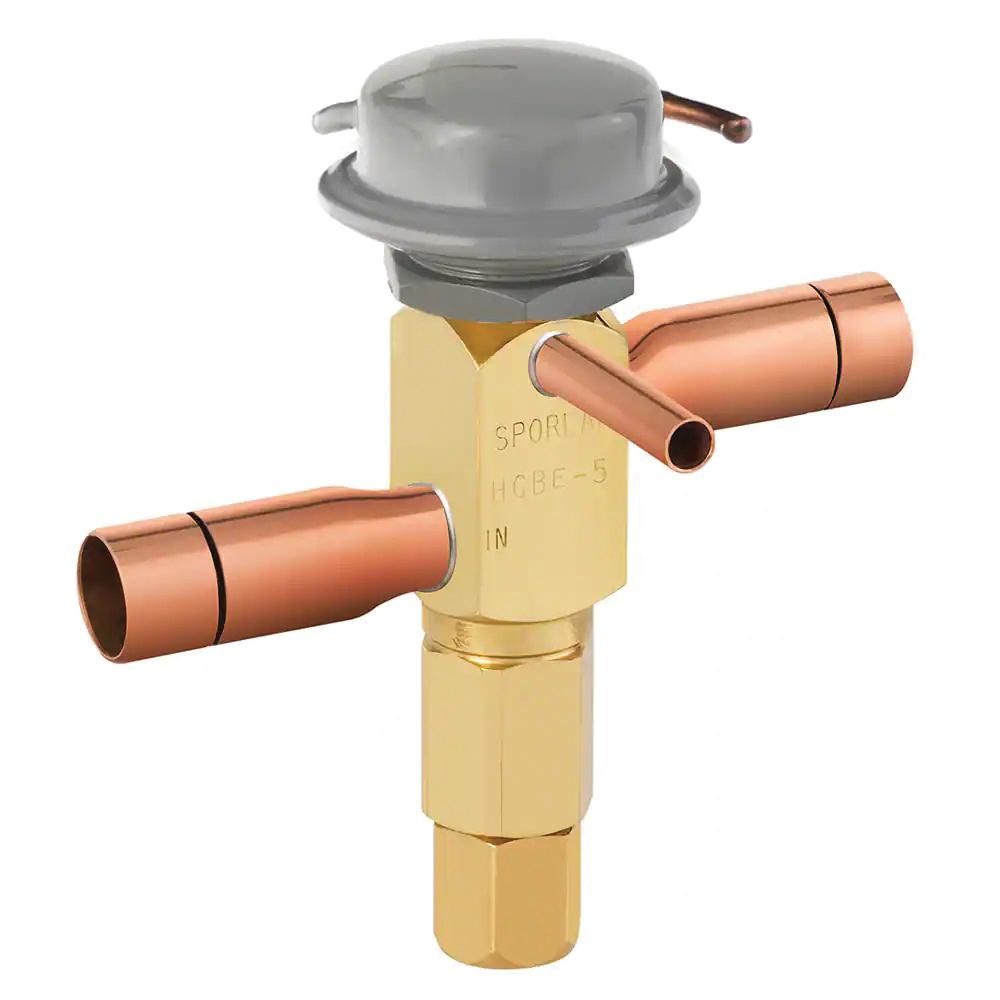

Sporlan® 904067 Discharge Bypass Pressure Regulating Valve, 5/8 in Inlet/Outlet Nominal, ODF Solder Connection
Brand: Sporlan®
Item No: HGBE-5-95/115 5/8
Sign In for Availability
Description
Sporlan® Discharge Bypass Pressure Regulating Valve, 5/8 in Inlet/Outlet Nominal, ODF Solder, 95/115 psi, Brass Body
Features
- Range of adjustable settings
- Design working pressure is 700 psi
- Compatible with all HFC refrigerants and blends
- 240 deg F maximum fluid temperature
- 120 deg F maximum ambient temperature
- 0.1 oz/yr at 300 psi maximum external leakage
- For used in air conditioning, refrigeration, industrial refrigeration, transportation
Specifications
|
Body Material |
Brass |
|
Connection Type |
ODF Solder |
|
Nominal Size |
5/8 in Inlet/Outlet |
|
Pressure Rating |
95/115 psi |
