Sporlan® 904062

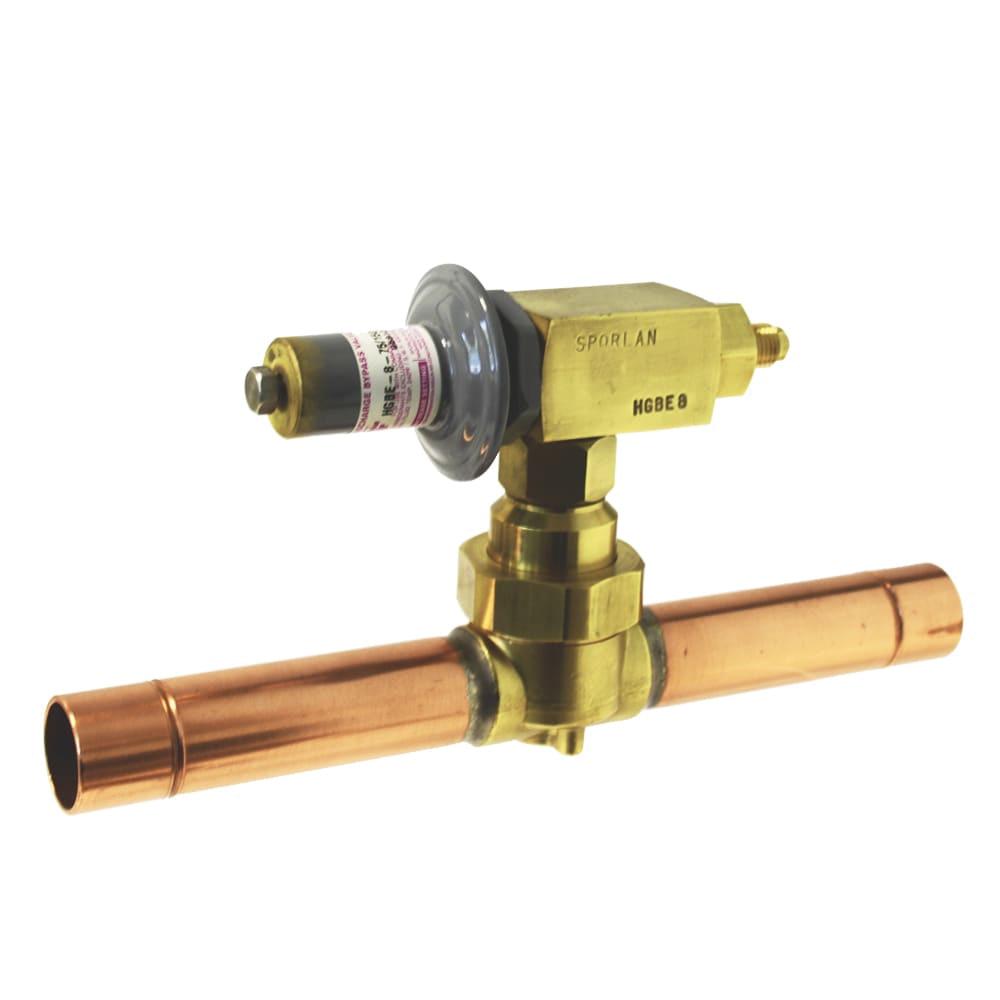

Sporlan® HGB Series 904062 Discharge Bypass Pressure Regulating Valve, 7/8 x 7/8 in Nominal, ODF End, Brass Body
Brand: Sporlan®
Item No: HGBE-8-75/150 7/8
Sign In for Availability
Description
The Sporlan Type HGB, and SHGB discharge bypass regulating valves have a brass body. The smaller capacity direct acting valves are available with SAE or ODF connections. The larger capacity pilot operated valves have extended copper connections. The direct acting valves are available with nonadjustable or adjustable settings. The pilot operated valves are available with adjustable settings. The primary function of these valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.
Sporlan® Discharge Bypass Pressure Regulating Valve, HGB Series, 7/8 x 7/8 in, ODF End, 75 to 150 psi Pressure, Brass Body, 0.43 in Port, Externally Equalized
Features
- Range of adjustable settings
- The SHGB pilot operated valves have a solenoid stop feature
Specifications
|
Additional Information |
0.43 in Port, Externally Equalized |
|
Body Material |
Brass |
|
End Type |
ODF |
|
Nominal Size |
7/8 x 7/8 in |
|
Pressure Rating |
75 to 150 psi |
|
Series |
HGB Series |
