Sporlan® 404180

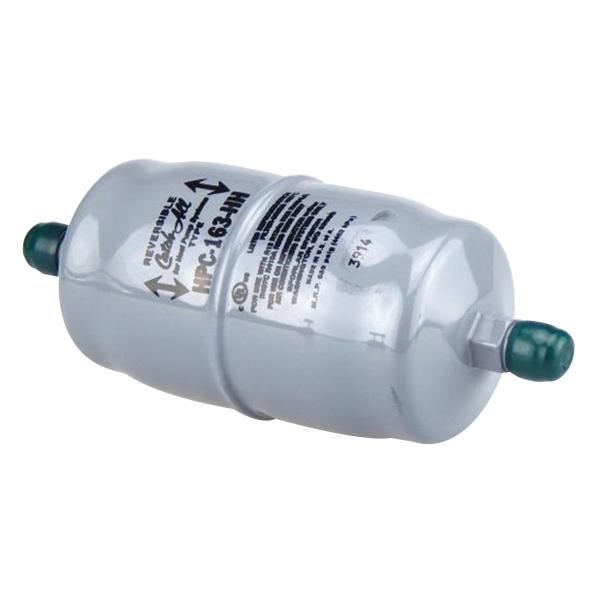

Sporlan® Catch-All® HPC-163-HH 404180 Liquid Line Filter Dryer, SAE Flared Connection, 14 cu-in Volume
Brand: Sporlan®
Item No: HPC-163-HH
Sign In for Availability
Description
The liquid line sealed model filter-driers - Sporlan Catch-All series provide unparalleled control of the most harmful contaminants in HVAC&R systems. Moisture, acids and solid debris are effectively captured to ensure the long life, efficiency and capacity of today's high performance air-conditioning and refrigeration systems. With multiple sizes and fitting configurations, it is easy to find the right model for systems up to 20 ton.
Sporlan® Catch-All® Liquid Line Filter Dryer, Model: HPC-163-HH, SAE Flared, 650 psi, 14 cu-in, HC, HCFC, HFC, HFO, R-134A, R-22, R-404A, R-407C, R-507, 26 sq-in Surface Area, 1 to 8 ton Flow, 3 in Dia x 7.78 in L
Features
- Complete contaminant control to protect and extend system life and ensure system reliability
- High performance desiccant package provides high water and acid capacity
- Porous molded core provides excellent filtration of solid debris for TEV and compressor protection
- CSG models have an integrated liquid and moisture indicating sight glass to allow visual refrigerant examination
Specifications
|
Connection Type |
SAE Flared |
|
Dimensions |
3 in Dia x 7.78 in L |
|
Flow Capacity |
1 to 8 ton |
|
Model |
HPC-163-HH |
|
Pressure Rating |
650 psi |
|
Refrigerant Type |
HC, HCFC, HFC, HFO, R-134A, R-22, R-404A, R-407C, R-507 |
|
Surface Area |
26 sq-in |
|
Volume |
14 cu-in |
