Sporlan® 168862

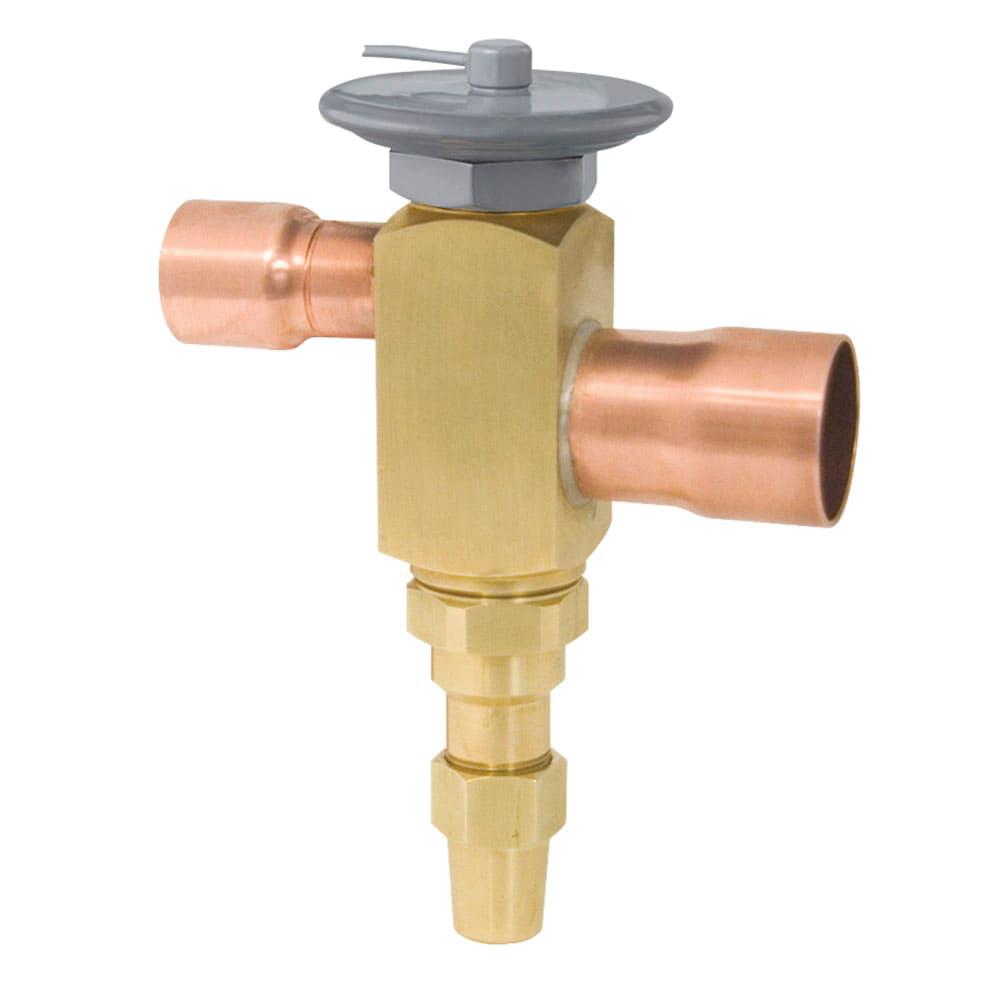

Sporlan® 168862 Thermostatic Expansion Valve, 1-1/8 in Inlet, 1-3/8 in Outlet, R-410A Refrigerant
Brand: Sporlan®
Item No: OZE-35-GA-B15
Sign In for Availability
Description
The Parker Sporlan type O balance ported thermostatic expansion valves have a brass bar stock body with extended ODF connections, adjustable superheat, long-lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation.
Sporlan® Thermostatic Expansion Valve, Inlet Size: 1-1/8 in, Outlet Size: 1-3/8 in, ODF Solder End, R-410A, 35 ton Capacity, Equalizer Type: External, 5 ft Length Capillary, Charge Type: GA, 425 psi Pressure, Brass Housing, 5.84 in OAH, 85 Thermostatic Element, 3/4 x 2 in Bulb
Features
- Balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation
- Thermostatic charges available to match system conditions
Specifications
|
Additional Information |
85 Thermostatic Element, 3/4 x 2 in Bulb |
|
Capillary Length |
5 ft |
|
Charge Type |
GA |
|
End Type |
ODF Solder |
|
Equalizer Type |
External |
|
Housing Material |
Brass |
|
Inlet Size |
1-1/8 in |
|
Nominal Capacity |
35 ton |
|
Outlet Size |
1-3/8 in |
|
Overall Height |
5.84 in |
|
Pressure Rating |
425 psi |
|
Refrigerant Type |
R-410A |
