Sporlan® 404380

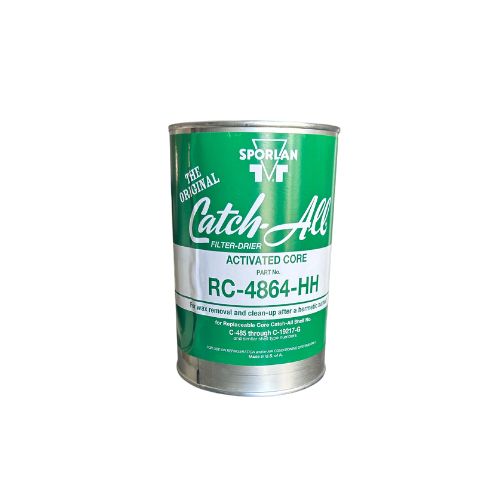

Sporlan® RC-4864-HH 404380 Liquid Line Dryer Core, SAE Flared Connection, 650 psi Pressure
Brand: Sporlan®
Item No: RC-4864-HH
Sign In for Availability
Description
Sporlan® Liquid Line Dryer Core, Model: RC-4864-HH, SAE Flared, 650 psi, 48 cu-in Desiccant Volume, For Use With: C-480, C-19200, RSF Series Shells, 95 mm Dia, 140 mm Height
Features
- This core should be used for wax removal on low temperature systems and for clean-up of systems that have had a hermetic motor burnout
- Even well engineered systems frequently contain minute quantities of wax that are sufficient to clog expansion valve screens or cause sticking of the valve
- Sporlan has developed a special blend of desiccants, including activated charcoal, that removes small amounts of wax in the liquid line before the wax can cause trouble at the expansion valve
- These Catch-All filter-driers have been very successful in correcting trouble jobs in the field
- In addition to their wax removal ability, these filter-driers will remove all of the other harmful contaminants that the standard filter-driers remove
Specifications
|
Connection Type |
SAE Flared |
|
Desiccant Volume |
48 cu-in |
|
Diameter |
95 mm |
|
Height |
140 mm |
|
Model |
RC-4864-HH |
|
Pressure Rating |
650 psi |
|
Suitable For Use With |
C-480, C-19200, RSF Series Shells |
