Sporlan® 168198

Description

The Sporlan® Q and BQ Series are replaceable cartridge style valves designed for small refrigeration systems, such as refrigerated cases, coolers and freezers. The externally equalized versions of these valves are ideal for air conditioning and heat pump systems. BQ valves are balance ported, engineered specifically for systems with a wide range of operating conditions and may be applied on bi-directional applications. Q and BQ valves are supplied as three individual component parts the thermostatic element, the valve body and the replaceable cartridge or orifice. The interchangeable nature of the Q and BQ family make it ideal for reducing inventory, while increasing valve options - so the right valve is always on hand. Q and BQ brass body type valves feature Sporlan®'s traditional knife edge, metal to metal thermostatic element to valve body construction, which ensures a leak-proof joint. Sporlan®'s selective thermostatic charges are specifically designed for low temperature, medium temperature and air conditioning applications. The elements are manufactured with a large flat diaphragm to reduce diaphragm stresses and provide precise control. The installer is able to select the best possible thermostatic charge for the application because the Q and BQ valve bodies and thermostatic elements are supplied as independent components. Refrigerant flow through the valve port opposes the pin movement in all type Q and BQ valves. This provides improved stability at light loads, when the pin modulates to a position close to the port. The liquid flow enters near the top of the valve body, which has a warming effect on the thermostatic element and minimizes the potential for charge migration. The type Q and BQ valves are available with flare or sweat connections and all feature adjustable superheat.

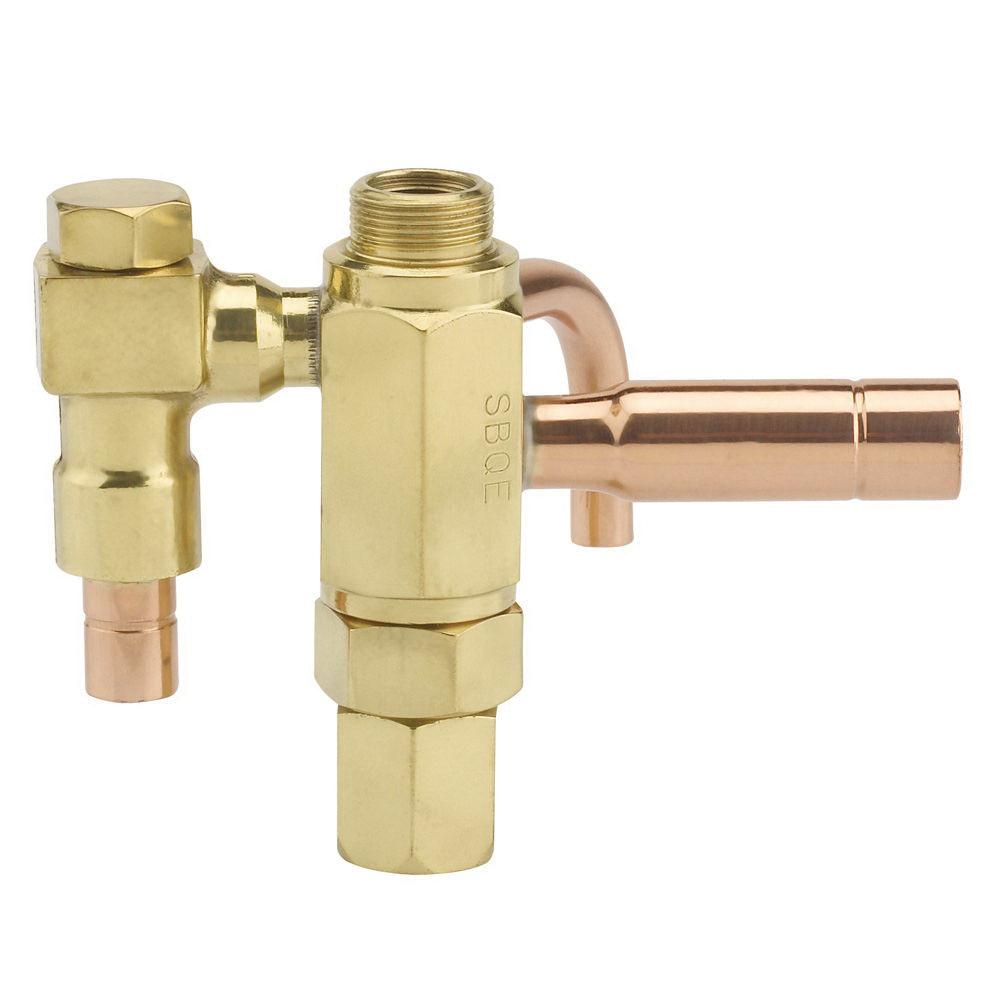

Sporlan® Expansion Valve Body, 3/8 x 1/2 in Nominal, ODF Connection, External Equalizer, 1/4 in ODF Equalizer Size, 450 psi, 100 Mesh Insertable Strainer Type, Brass Body, Brass Seat

Features

• Stainless steel pin
• Brass pin carrier
• Stainless steel pushrod
