Sporlan® 930022

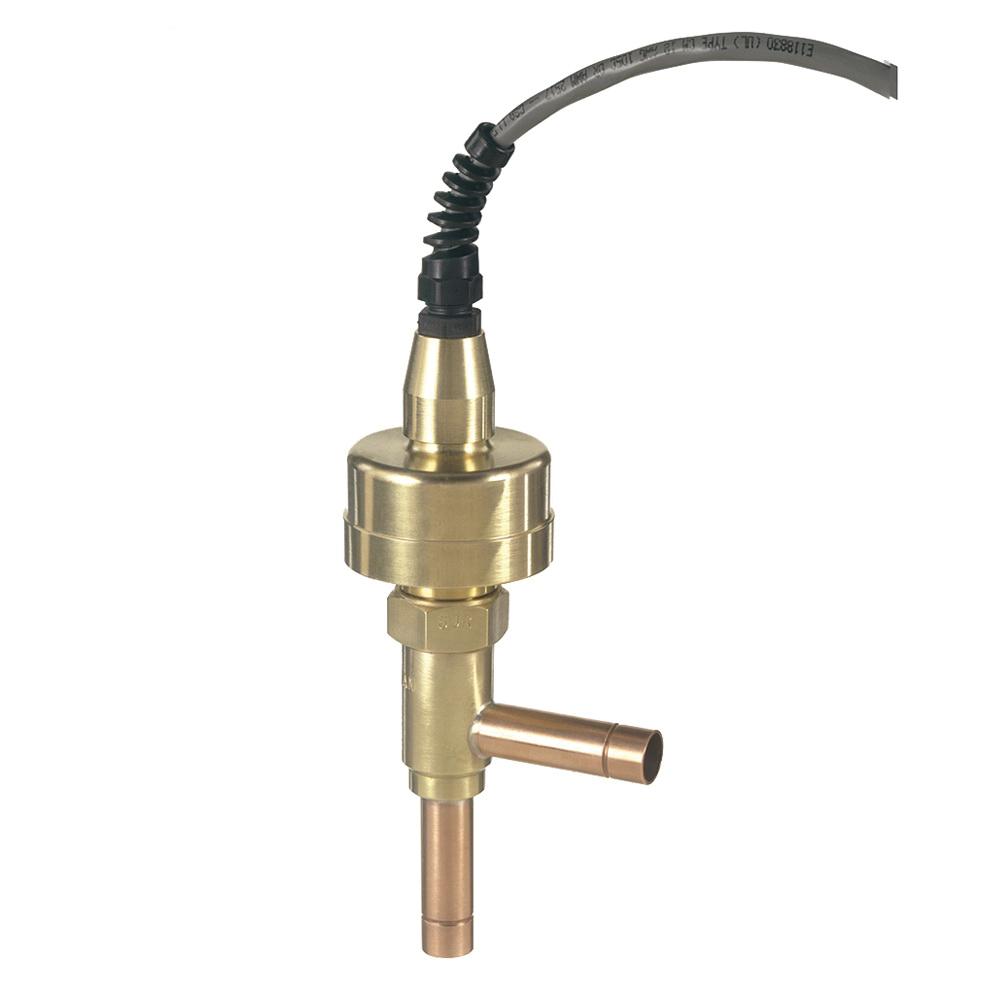

Sporlan® 930022 Discharge Bypass Pressure Regulating Valve, 1/2 in Inlet/Outlet Nominal, ODF Connection
Brand: Sporlan®
Item No: SDR-3X-10-S 1/2
Sign In for Availability
Description
Sporlan® Discharge Bypass Pressure Regulating Valve, 1/2 in Inlet/Outlet Nominal, ODF
Features
- Range of adjustable settings
- 0.1 oz/yr at 300 psi maximum external leakage
- Angle body configuration
- 10 ft cable length, stripped and tinned ends
- 1.5 kV cu-m/hr
- Two-phase bipolar wet motor type
- Design working pressure is 700 psi
- 75 ohm +/- 10% phase resistance
- 131-215 mA/winding current range
- Power input-4 W
- 3193 resolution (steps)
- Less than 400 cu-cm/min at 100 psi maximum internal leakage, 0.1 oz/year at 300 psi maximum external leakage
- -40 deg F minimum fluid and ambient temperature
- Materials of construction-brass, copper, synthetic seals, stainless stee
- For used in air conditioning, refrigeration, industrial refrigeration, transportation
Specifications
|
Connection Type |
ODF |
|
Nominal Size |
1/2 in Inlet/Outlet |
