Sporlan® 901625
Sporlan® 901625 Evaporator Pressure Regulating Valve, 1-5/8 in Nominal, ODF Copper Solder Connection, 0/100 psi Pressure
Brand: Sporlan®
Item No: SORIT-20-0/100 15/8
Sign In for Availability
Description

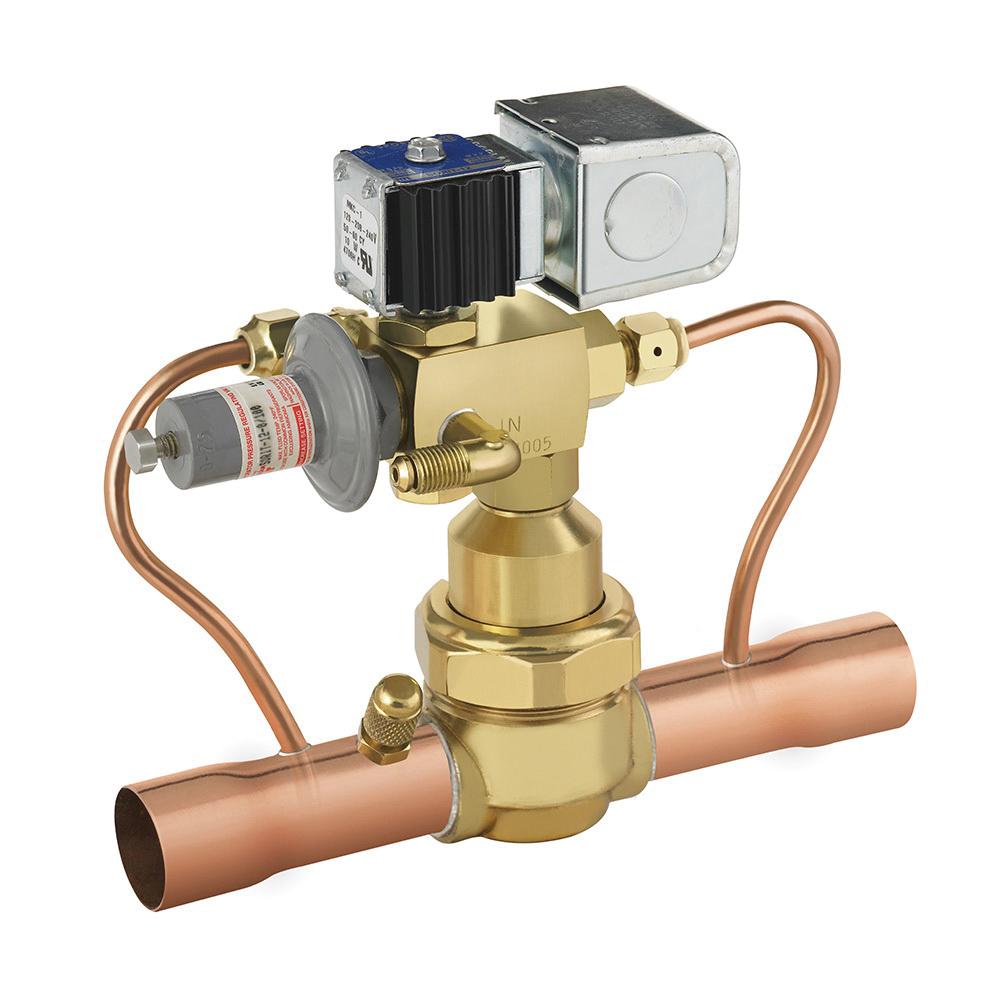

The Sporlan type (S)ORIT evaporator regulating valves have a brass body and extended copper connections. They are available with a range of adjustable settings and pressure tap. The primary function of these valves, referred to as EPR valves, is to prevent the evaporator pressure from falling below a predetermined value or setting. Each valve is factory tested to ensure positive leak-free performance. For over 80-years the Sporlan Division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners, and original equipment manufacturers.
Sporlan® Evaporator Pressure Regulating Valve, 1-5/8 in Nominal, ODF Copper Solder, 0/100 psi, 10 W, 2-1/2 in Opening, Brass Body, -40 to 120 deg F Ambient, -40 to 240 deg F Fluid
Features
- High side pilot for improved temperature control and low pressure drop
- Normally open to allow system evacuation without a manual operator
- Range of adjustable settings up to 150 psi
- Piloted externally pressure regulated type
- Solenoid stop feature to close valve during system defrost
- Pressure tap
Specifications
|
Body Material |
Brass |
|
Connection Type |
ODF Copper Solder |
|
Nominal Size |
1-5/8 in |
|
Opening Size |
2-1/2 in |
|
Power Rating |
10 W |
|
Pressure Rating |
0/100 psi |
|
Temperature Rating |
-40 to 120 deg F Ambient, -40 to 240 deg F Fluid |
