Sporlan® 3905-00

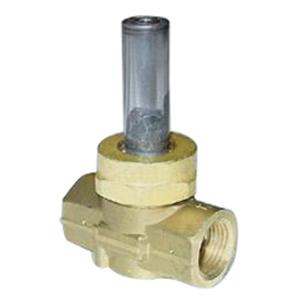

Sporlan® 3905-00 Solenoid Valve, 1/2 in Nominal, FNPT Connection, 5.9 gpm at 5 psi, 240 deg F, Forged Brass Body
Brand: Sporlan®
Item No: W14P2
Sign In for Availability
Description
Sporlan® Solenoid Valve, 1/2 in Nominal, FNPT, NC, 500 psi Working, 150 psi AC and 125 psi DC Differential, 5.9 gpm at 5 psi, 7/16 in Orifice, Coil Insulation Class: F, MKC-2 Coil, Forged Brass Body, Stainless Steel Seat, Stainless Steel Stem, 240 deg F, 2.41 in L x 3.84 in H
Features
- Less coil
- Use the disc type valves for high temperature and steam applications up to 25 psi
- Valves-mounted horizontally, on their side or in a vertical line
- 15 W AC, 18 W DC power rating
Specifications
|
Body Material |
Forged Brass |
|
Coil Insulation Class |
F |
|
Coil Type |
MKC-2 |
|
Configuration |
NC |
|
Connection Type |
FNPT |
|
Dimensions |
2.41 in L x 3.84 in H |
|
Flow Rate |
5.9 gpm at 5 psi |
|
Nominal Size |
1/2 in |
|
Orifice Size |
7/16 in |
|
Pressure Rating |
500 psi Working, 150 psi AC and 125 psi DC Differential |
|
Seat Material |
Stainless Steel |
|
Stem Material |
Stainless Steel |
|
Temperature Rating |
240 deg F |
