Sporlan® 3821-00

Description

The Sporlan type A, B and E series solenoid valves are provided as 2 basic types of solenoid valves. The most common is the normally-closed type, in which the valve opens when the coil is energized, and closes when the coil is de-energized. The other type is the normally-open valve which opens when the coil is de-energized and closes when the coil is energized. The valves are brass forged or brass bar stock. The E series has extended copper connections. For Air Conditioning or refrigeration applications it is important to use system capacity, refrigerant, type of fluid, temperature and pressures. It is not recommended to size by line size. Refer to literature or selection program for capacity data. Each valve is factory tested to ensure positive leak-free performance. For over 80 years the Sporlan division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners, and original equipment manufacturers.

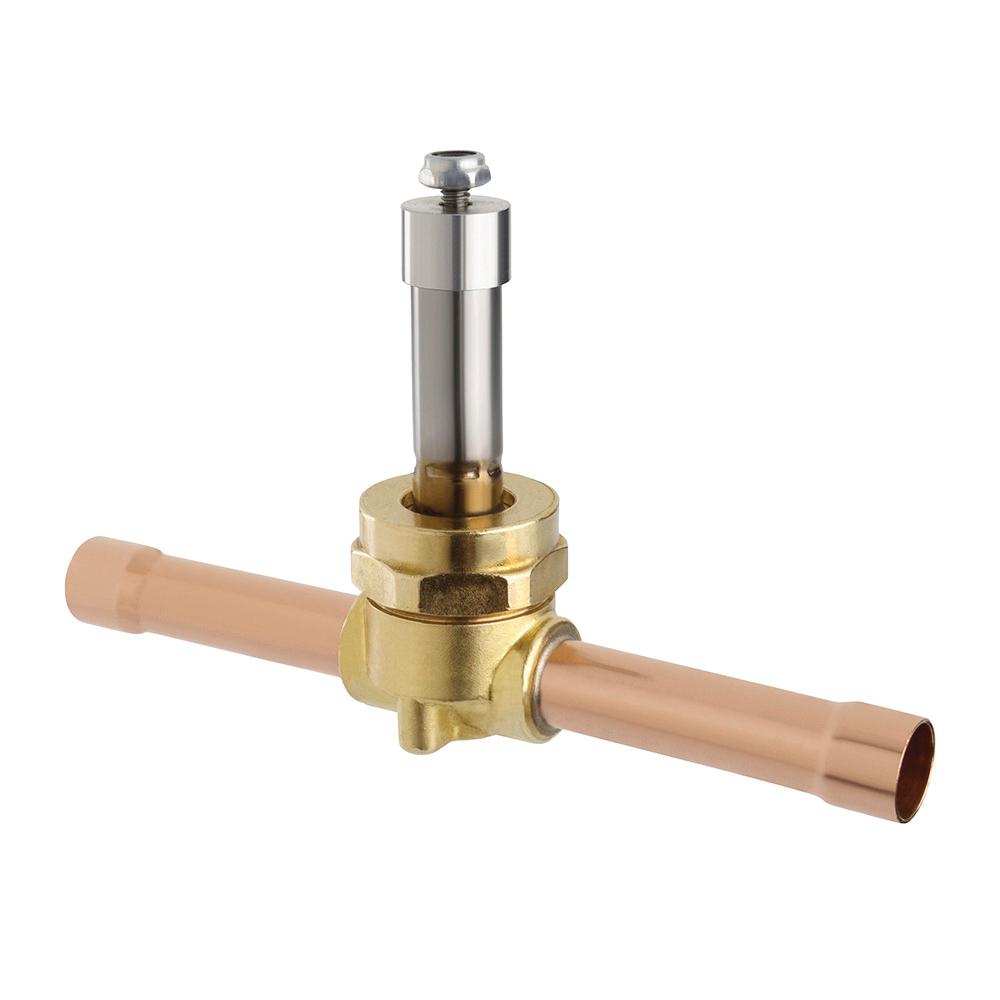

Sporlan® Solenoid Valve, 5/8 in Nominal, ODF Extended End, NO, 500 psi Working, 250 psi Differential, 14/32 in Orifice, Coil Insulation Class: F, OMKC-2 Coil, Synthetic Seat, Synthetic-Coated Metal Seal, 6.88 in L x 4.47 in H

Features

• Less coil
• Synthetic seating material for tight closing
• Synthetic-coated metal gaskets minimize external leaks
• Refrigerant fluid type
• 15 W power rating
