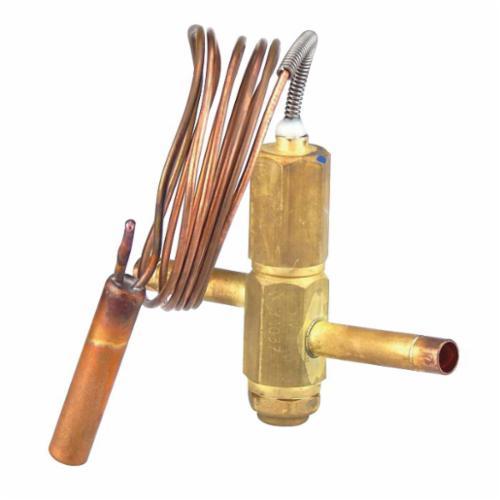

Sporlan® 154596

Description

The Sporlan® type Y1037 temperature responsive expansion valves (TREV) have a brass bar stock body, ODF connections and inlet strainer. Internal parts and element are not to be removed. Each valve is factory tested to ensure positive leak-free performance. This valve prevents excessive discharge temperatures from occurring on refrigeration systems by modulating refrigerant flow in response to bulb temperature. The TREV injects liquid refrigerant ahead of the compressor in the suction line. The Y1037 can be used in other refrigerant applications; however care must be taken to ensure that the valve's maximum operating pressure of 500 lbf/sq-in is not exceeded. Valve setting is the temperature at which the valve opens. Rated capacity occurs at 10 deg F above the bulb temperature at which the valve opens. For over 80 Year the Sporlan® division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners and original equipment manufacturers.

Sporlan® Temperature Responsive Expansion Valve, 3/8 in Nominal, ODF Solder Connection, 1 ton Nominal Capacity, 60 in Capillary Length, 500 psi, 100 Mesh Insertable Strainer Type, 50 deg F

Features

• Inlet strainer
• 190 deg F opening temperature

Specifications

Documentation
