Streamline® A 14850

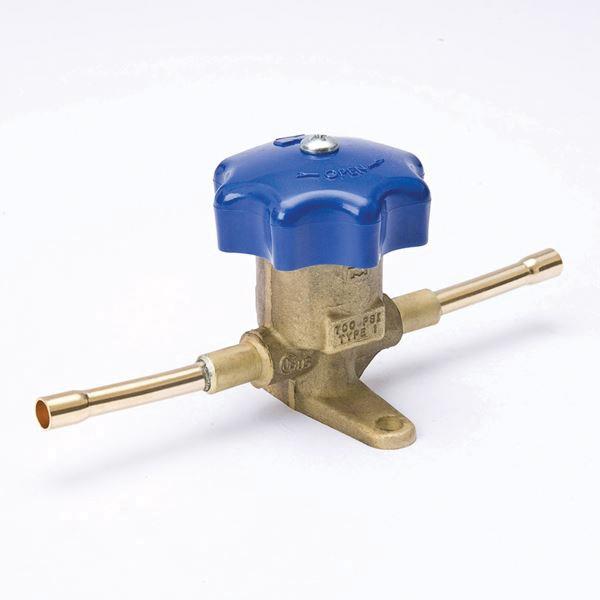

Streamline® LINEMASTER® A 14850 Straight Packless Diaphragm Valve, 3/8 in Nominal, Solder End, 350 to 700 psi Pressure
Brand: Streamline®
Item No: A-14850
Sign In for Availability
Description
Streamline® LINEMASTER® Straight Packless Diaphragm Valve, 3/8 in, Solder End, 350 to 700 psi Pressure, -40 to 300 deg F, Forged Brass Body, 5.7 in W, 2.7 in H, 0.62 lb Weight
Features
- Forged brass body with full size openings for maximum flow and minimum pressure drop
- Diaphragms for positive isolation
- Thermally stable hand wheel for operation in wide temperature ranges
Specifications
|
Additional Information |
0.62 lb Weight |
|
Body Material |
Forged Brass |
|
End Type |
Solder |
|
Height |
2.7 in |
|
Nominal Size |
3/8 in |
|
Pressure Rating |
350 to 700 psi |
|
Temperature Rating |
-40 to 300 deg F |
|
Width |
5.7 in |
