Streamline® A 15514-450

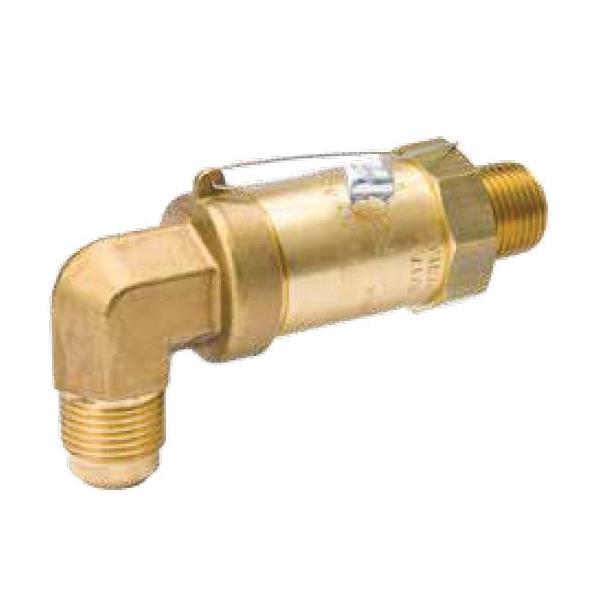

Streamline® SAFETYMASTER® A 15514-450 Pressure Relief Valve, 1/2 x 5/8 in Nominal, NPTFE x Flared End, Brass Body
Brand: Streamline®
Item No: A15514-450
Sign In for Availability
Description
Streamline® SAFETYMASTER® Pressure Relief Valve, 1/2 x 5/8 in, NPTFE x Flared End, 150 to 700 psi Pressure, -40 to 300 deg F, Brass Body, 4.1 in W, 1.02 lb Weight, 450 psi Pressure Setting
Features
- Designed primarily for use on liquid receiver applications above the liquid refrigerant level
- Satisfy ASHRAE Standard 15 code requirements for a refrigerant vessel safety device (application information can also be found in ASHRAE guide and data book)
- Comply with ASME code for unfired pressure vessels
- Discharge rates are certified by National Board of Boiler and Pressure Vessel Inspectors
- Designed for maximum discharge capacities
- Compatible with all CFC, HCFC and HFC refrigerants and oils
Specifications
|
Additional Information |
1.02 lb Weight, 450 psi Pressure Setting |
|
Body Material |
Brass |
|
End Type |
NPTFE x Flared |
|
Nominal Size |
1/2 x 5/8 in |
|
Pressure Rating |
150 to 700 psi |
|
Temperature Rating |
-40 to 300 deg F |
|
Width |
4.1 in |
Documentation
