Streamline® AC17870

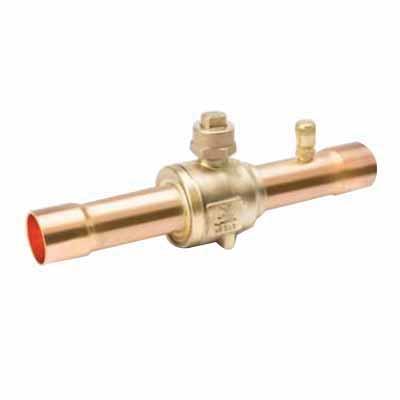

Streamline® Cyclemaster® AC17870 Ball ValveWith Access Port, 3-1/8 in Nominal, 700 lbf/sq-in Pressure
Brand: Streamline®
Item No: M318RBVT FULL FLOW
Sign In for Availability
Description
Streamline's Cyclemaster ball valves feature full port construction, environmentally friendly, chromium-plated balls for reduced wear and extended seal life, and our exclusive MCM seals for industry-leading longevity and low leak rates. Optional features include access ports, brass and valox seal caps, 3-way body styles, and motorized actuators to provide local or remote operation.
Streamline® Cyclemaster® Ball ValveWith Access Port, 3-1/8 in Nominal, 700 lbf/sq-in, 3 in Opening, 553 Flow Coefficient (Cv), -40 to 300 deg F, 16 in L
Features
- Full port construction to match line size ID
- Rupture-proof encapsulated stem
- MCM seal technology
- Internally equalized ball design
- Bi-directional flow characteristics
Specifications
|
Dimensions |
16 in L |
|
Flow Coefficient (Cv) |
553 |
|
Nominal Size |
3-1/8 in |
|
Opening Size |
3 in |
|
Pressure Rating |
700 lbf/sq-in |
|
Temperature Rating |
-40 to 300 deg F |
Documentation
