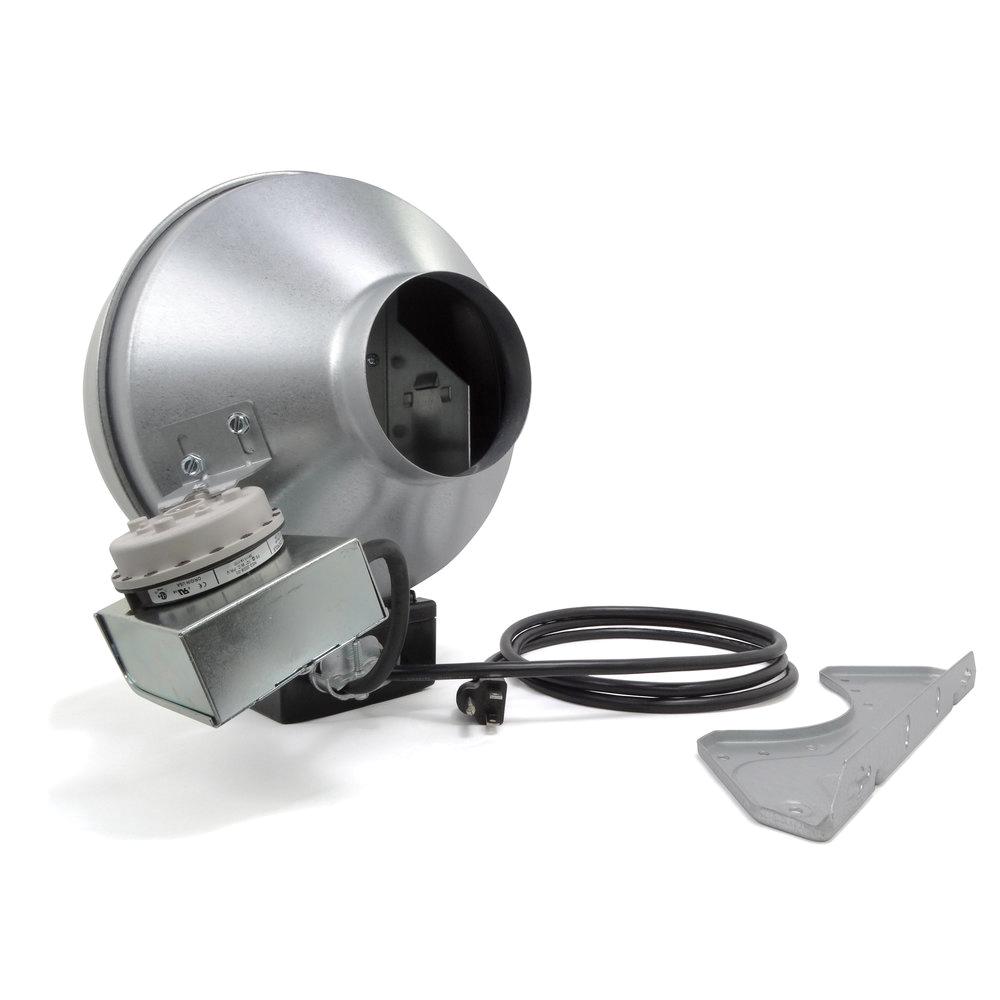

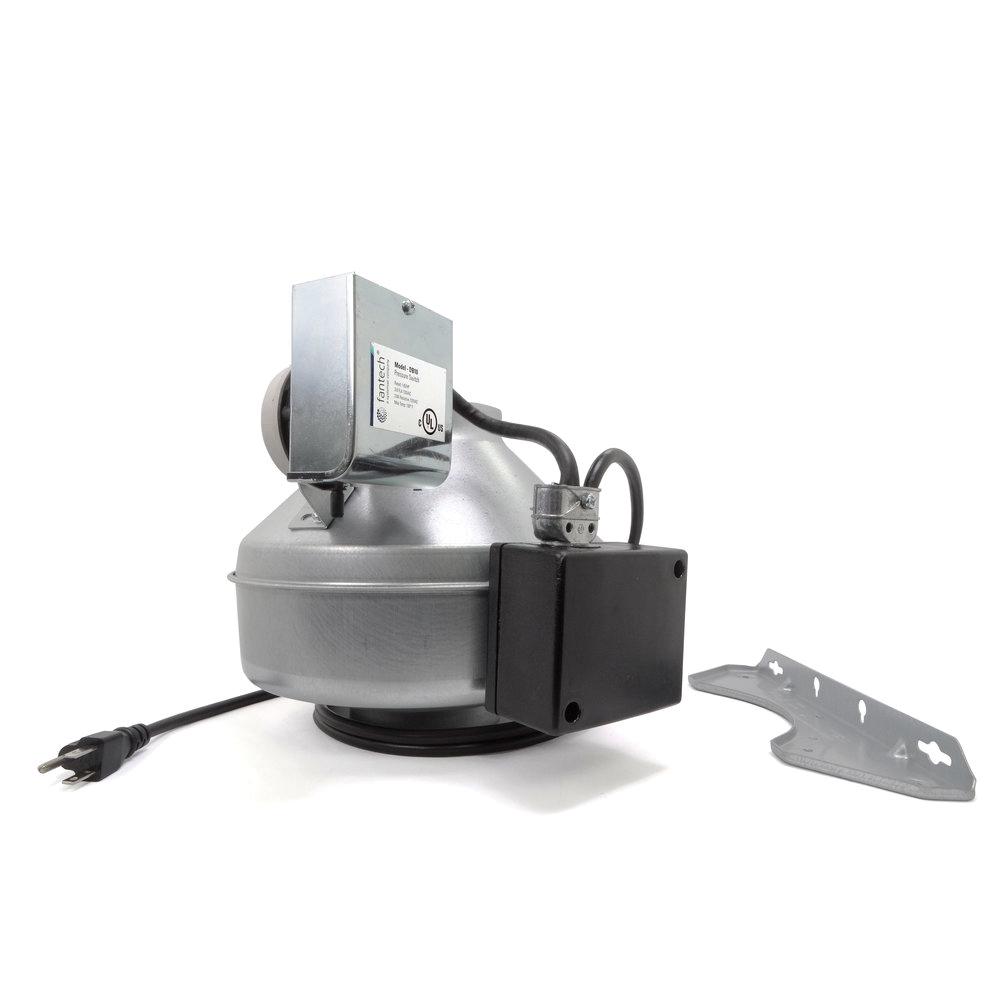

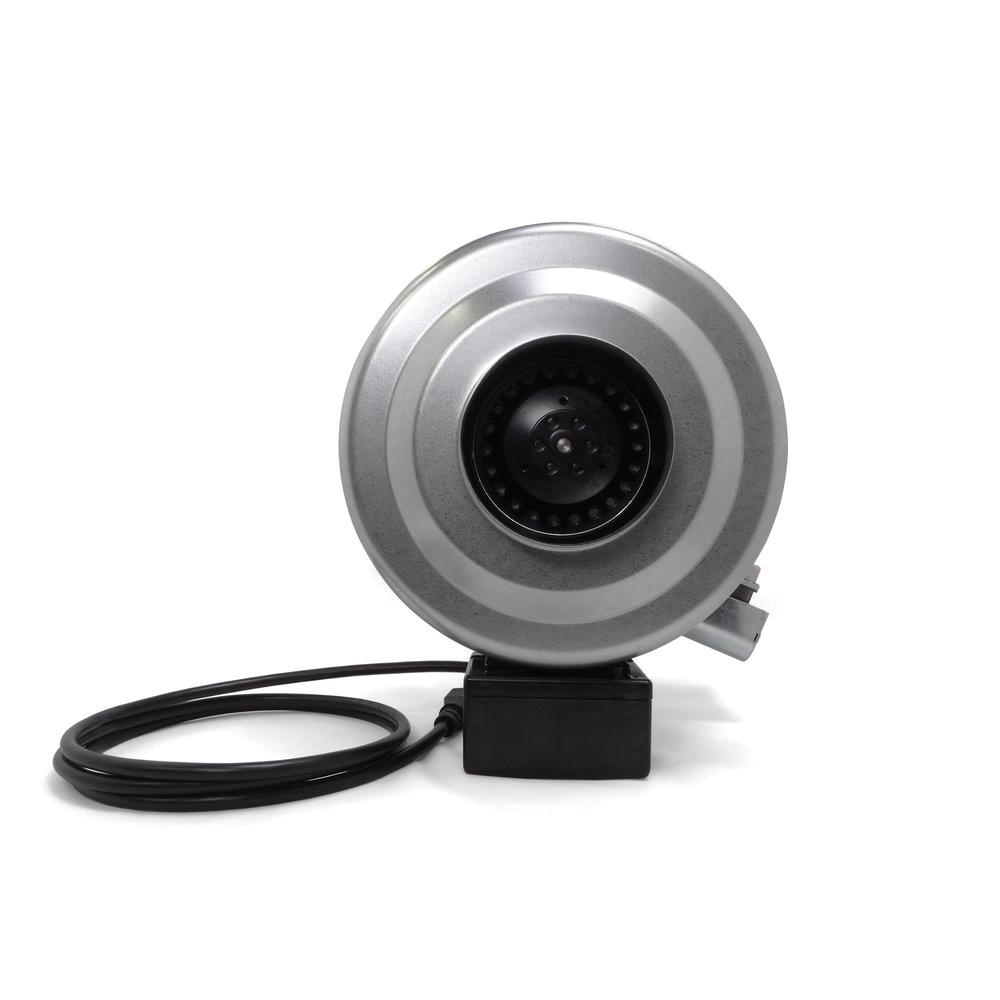

Systemair DBF 4XL

Description

The Fantech model DBF 4XL dryer exhaust fan has been specially designed to solve the problems caused by long duct runs on clothes dryers. According to dryer manufacturers and some local building codes, dryer exhaust assistance should be added in the dryer duct run when the length of the duct exceeds 24 ft with no bends, 20 ft with one bend or 15 ft with two bends. When the dryer is on, Fantech's patented pressure sensing switch automatically turns the fan on. The warm, moist air in the dryer is exhausted out of the building quickly. The dryer exhaust fan monitors the status of the dryer and will turn itself off when the dryer stops.

Systemair Dryer Exhaust Fan, 120 VAC, 0.54 A, 60 Hz, 64.8 W, 140 deg F, 9-3/4 in Length, 8-15/16 in Height, IP44, 188 cfm, Insulation Class: B, 1, 2175 rpm Speed Rating

Features

• Backward inclined blades of the motorized impeller allow lint to pass through the fan
• Pressure switch to automatically activate the fan when the dryer is on
• The fan can be used to effectively maintain dryer exhaust in duct runs up to 130 ft
• Permanently lubricated sealed ball bearings
• Self-cleaning backward curved impeller
• Automatic reset thermal overload protection
• Air-tight galvanized steel housing
• 5-1/2 ft, 120 VAC power cord
