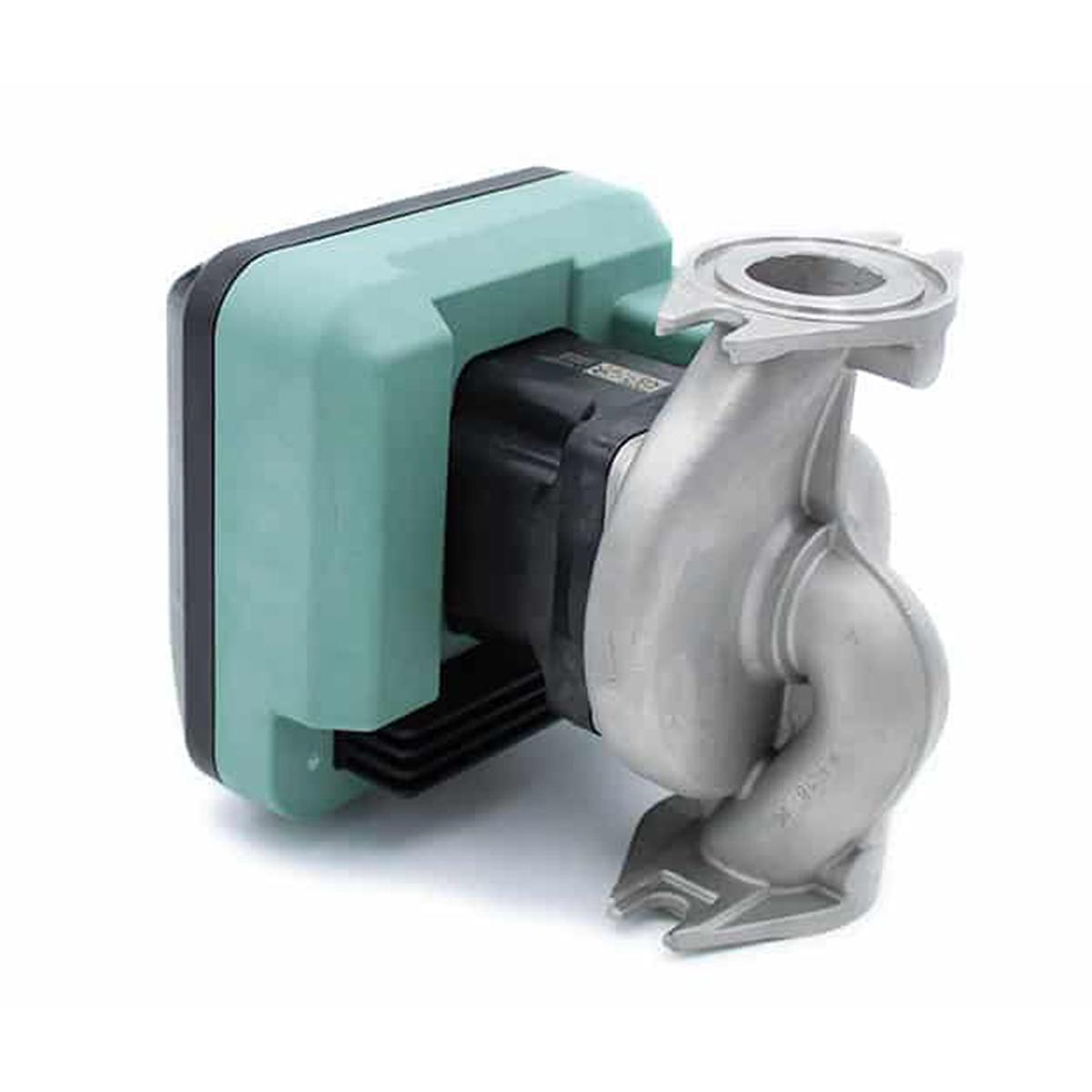

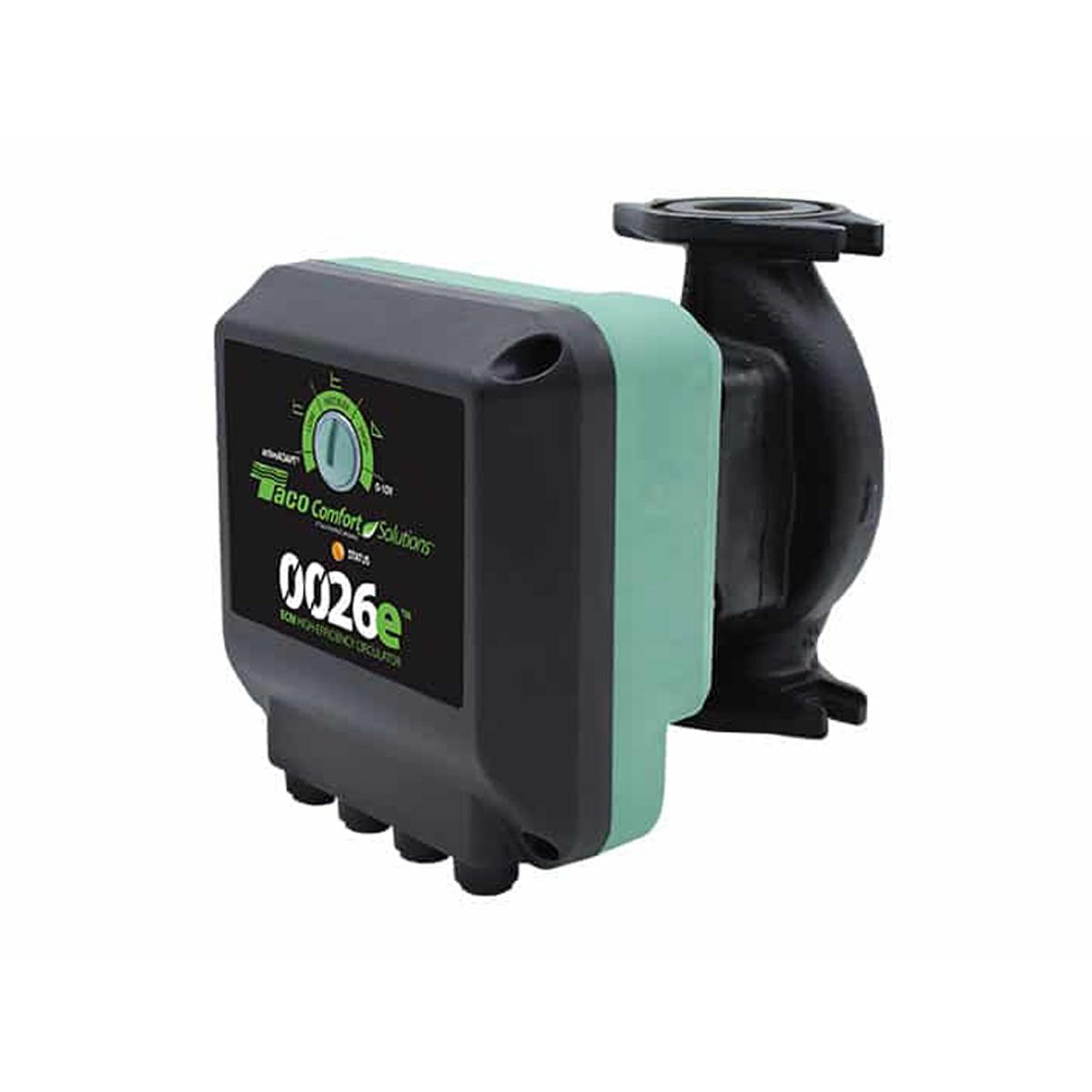

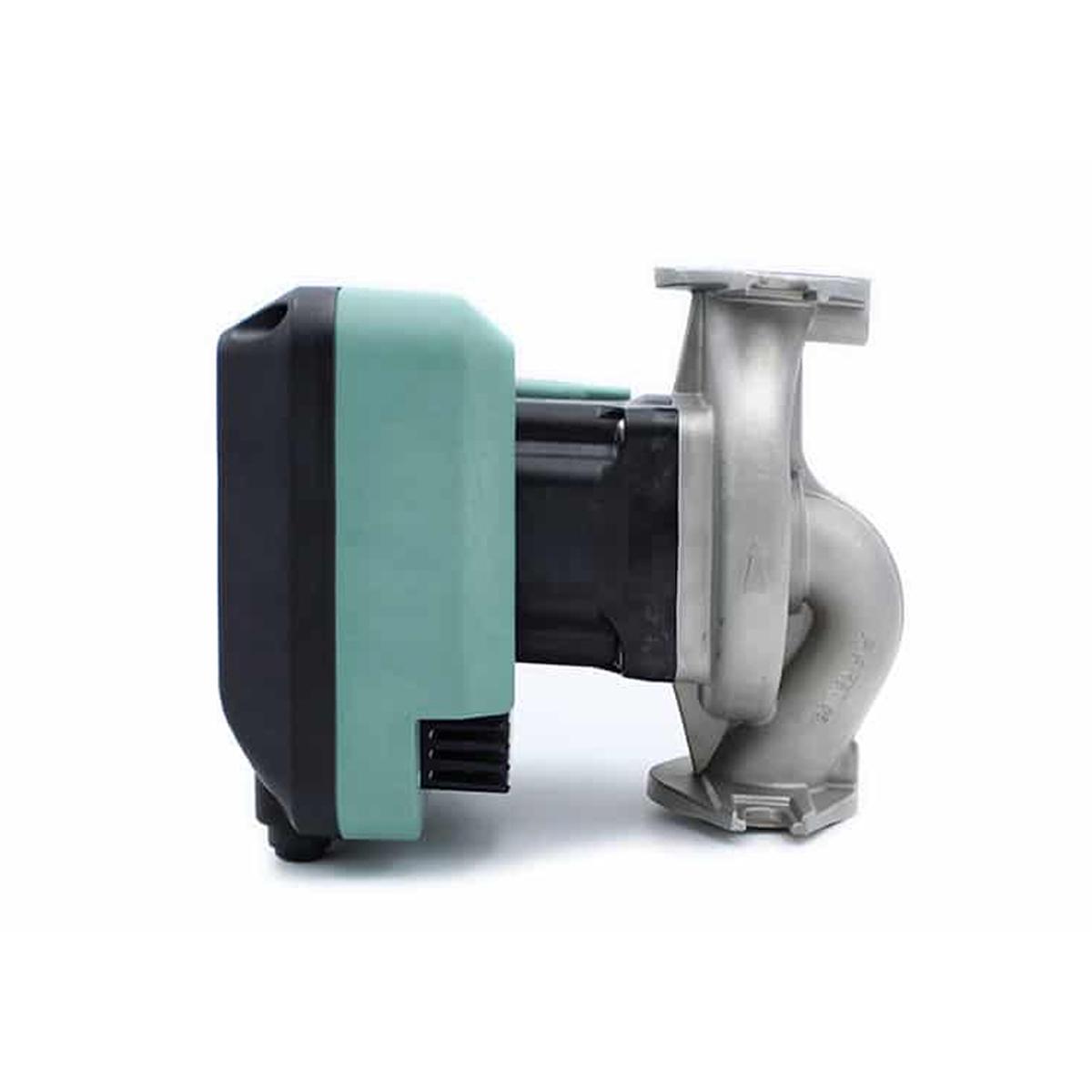

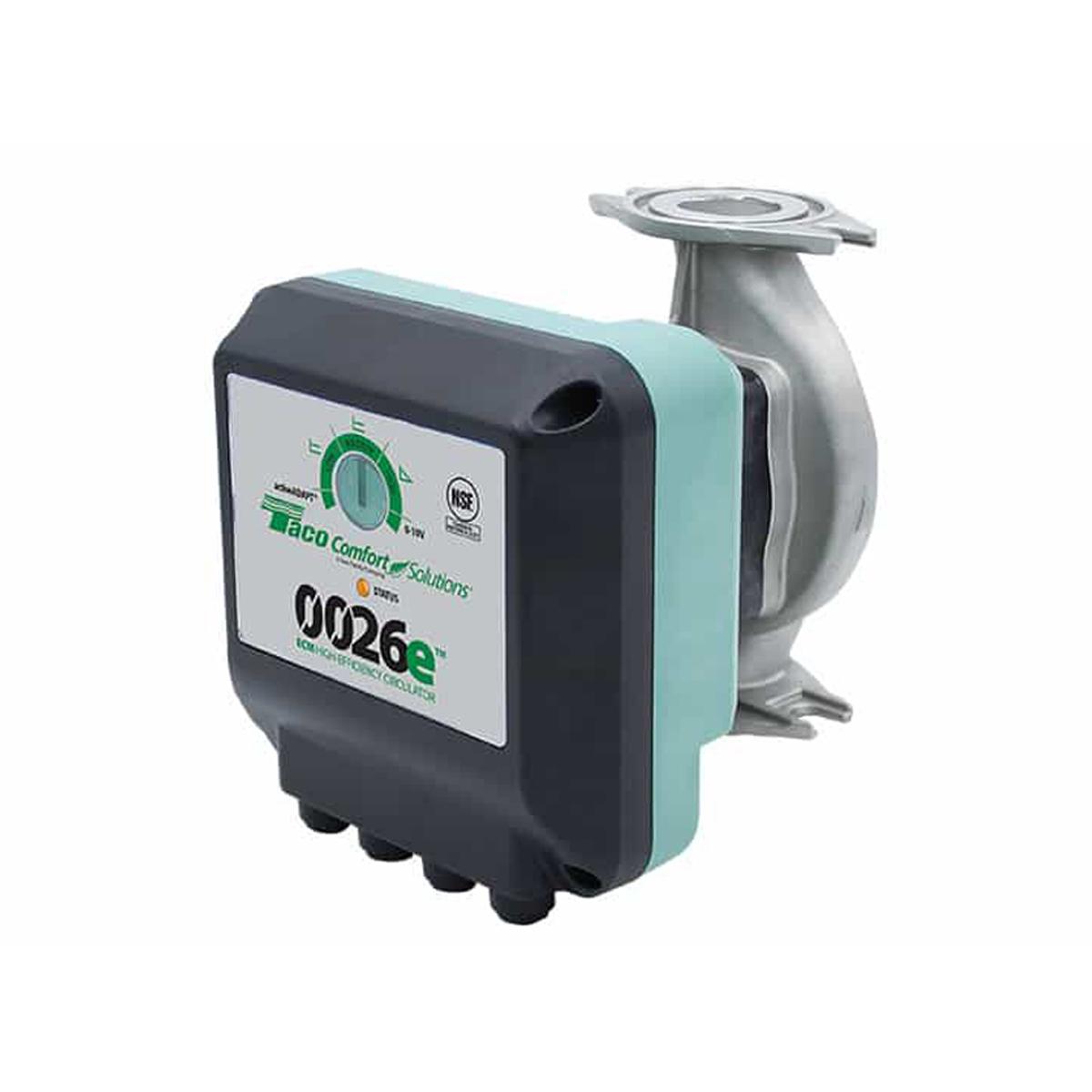

Taco Comfort Solutions® 0026e-F2

Description

The 0026e™ is a high performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With five easy settings, it's variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 three-speed and 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e™ reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.

Taco Comfort Solutions® High-Efficiency Circulator Pump, 115/208/230 VAC, 1/0.5 A, 50/60 Hz, 1/4 hp, 830 to 3800 rpm Speed, 10 to 125 W Power, 44 gpm Flow Rate, 1 ph, Motor Type: ECM, Permanent Magnet, 150 psi, 26 ft Maximum Head, Carbon Thrust, Ceramic Bearing, Composite Impeller, Cast Iron Body, 230 deg F

Features

• Replaces all single-speed and three-speed circulators in its class
• Rotatable control cover to simplify installation
• BIO Barrier® protects the pump from system contaminants
• SureStart® automatic unblocking and air purging mod
• Use with a Taco ZVC zone valve control or SR switching relay for on/off operation
• Nut-grabber feature on flanges for easier fit-up
• Dual-electrical knock-outs and removable quick connect terminal strip for easy wiring
• Double insulated
• Whisper quiet operation

Specifications

Documentation
