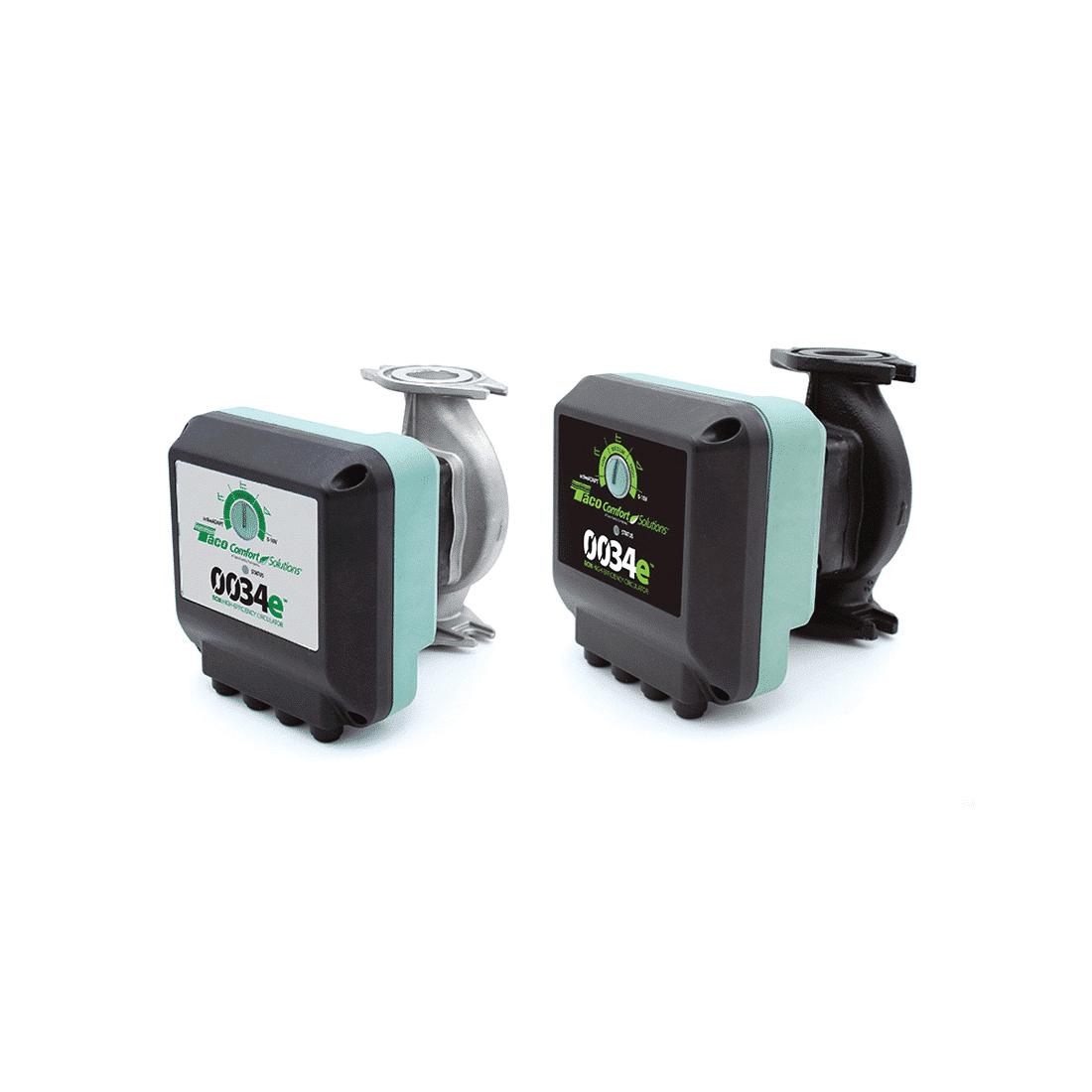

Taco Comfort Solutions® 0034E-F2
Taco Comfort Solutions® 0034E-F2 High Efficiency Circulator, 50 gpm, 170 W, 115 to 230 V, 1.48 A, 50/60 Hz, Cast Iron
Brand: Taco Comfort Solutions®
Item No: 0034E-F2
Sign In for Availability
Description

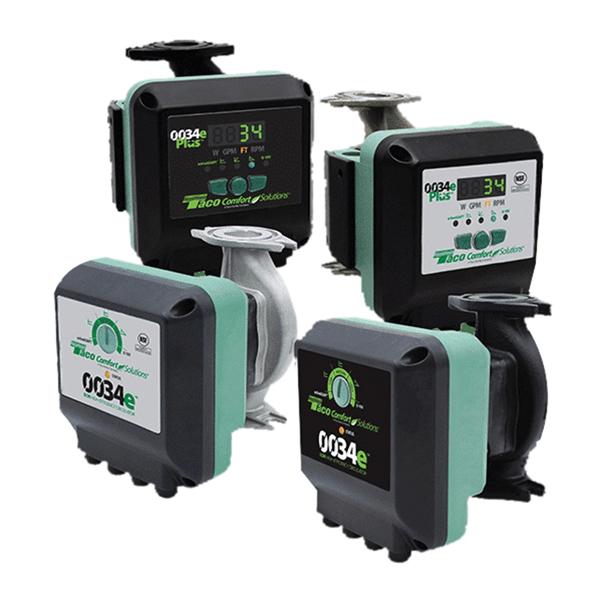

The 0034e™ and 0034ePlus™ ECM high-efficiency circulators are high-performance, variable speed, wet-rotor circulators with high-efficiency ECM permanent magnet technology. Their variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-speed, 0013, 0013 3-speed and 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034e™ comes with an easy-to-use dial while the 0034ePlus™ has an intuitive digital user interface.
Taco Comfort Solutions® High Efficiency Circulator, 50 gpm Flow Rate, 170 W Power, 115 to 230 V, 1.48 A, 50/60 Hz, 150 psi, 6-1/2 in Connection, Flanged Connection, 1 ph, 14 to 230 deg F, Cast Iron, 7.05 in H x 8.05 in W
Features
- Rotatable control cover to simplify installation
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Nut-grabber feature on flanges for easier fit-up
- Double insulated and whisper quiet operation
Specifications
|
Amperage Rating |
1.48 A |
|
Connection Size |
6-1/2 in |
|
Connection Type |
Flanged |
|
Dimensions |
7.05 in H x 8.05 in W |
|
Flow Rate |
50 gpm |
|
Frequency Rating |
50/60 Hz |
|
Material |
Cast Iron |
|
Maximum Pressure |
150 psi |
|
Phase |
1 ph |
|
Power Rating |
170 W |
|
Temperature Rating |
14 to 230 deg F |
|
Voltage Rating |
115 to 230 V |
