Taco Comfort Solutions® 5122-C2

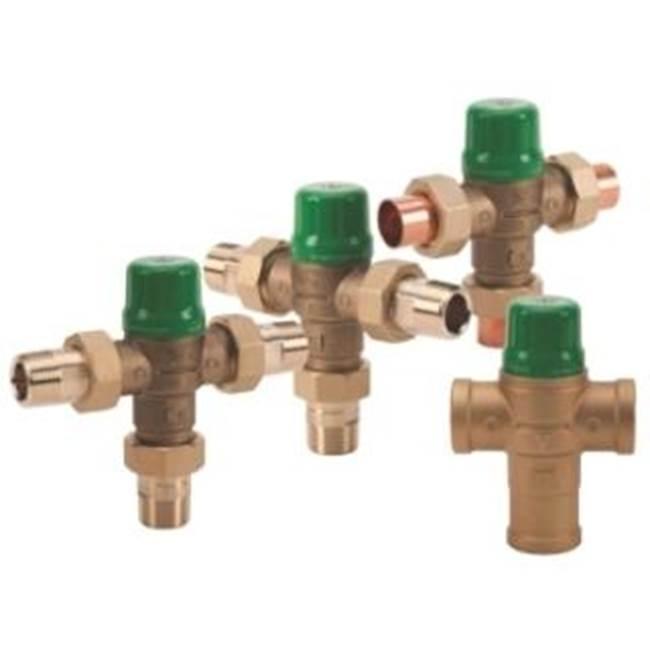

Taco Comfort Solutions® 5120 Series 5122-C2 Mixing Valve, 1/2 in, Sweat, 14 gpm, 200 psi, Forged Brass, Lead-Free
Brand: Taco Comfort Solutions®
Item No: 5122-C2
Sign In for Availability
Description
The versatile 5120 Series lead-free mixing valve (NSF 61, ASSE 1017 and ASSE 1070 certified) provides the ultimate performance for domestic hot water applications. The 5120 Series lead-free mixing valve ASSE 1017 certification allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120 deg F or less. The design and advanced thermostatic element ensures a stable mixed water temperature throughout the valve's adjustable range. The ASSE 1070 listing allows for point-of-use applications in homes, hospitals, schools, nursing homes and public facilities, and more where a 1070 valve is required.
Taco Comfort Solutions® Mixing Valve, 5120 Series, 1/2 in, Sweat Connection, 14 gpm Flow Rate, 200 psi Pressure, Flow Coefficient (Cv): 1.8 Cv, FKM Seal, Forged Brass, Lead-Free/Contains Lead: Lead-Free, 39 to 80 deg F Cold, 120 to 180 deg F Hot, 4.8 in H x 4.8 in L
Features
- Lockable maximum temperature setting
- Outlet temperature strip
Specifications
|
Connection Type |
Sweat |
|
Dimensions |
4.8 in H x 4.8 in L |
|
Flow Coefficient (Cv) |
1.8 Cv |
|
Flow Rate |
14 gpm |
|
Lead-Free/Contains Lead |
Lead-Free |
|
Material |
Forged Brass |
|
Nominal Size |
1/2 in |
|
Pressure Rating |
200 psi |
|
Seal Material |
FKM |
|
Series |
5120 Series |
|
Temperature Rating |
39 to 80 deg F Cold, 120 to 180 deg F Hot |
