Taco Comfort Solutions® HLS

Description

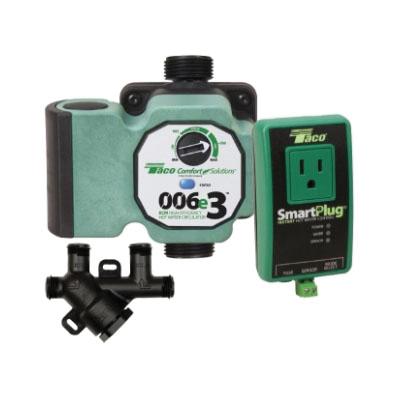

Hot-Link® system is a quick, easy retrofit using the existing plumbing. Mount the by-pass valve under the sink and the pump at the water heater. The valves unique thermal disk technology sends cooled water back to the water heater so hot water lines remain hot. Cleaning made easy. There no need to remove the hot-link valve from the piping to keep it clean. Our exclusive clean-in-place design makes short work of keeping the system operating properly.

Taco Comfort Solutions® Hot Water Recirculation System, 115 V, 0.52 A, 60 Hz, 125 psi, Motor Speed Rating: 3250 rpm, 1/40 hp, 3/4 in Connection, MNPT x FNPT Connection, 1 ph, 220 deg F, 8-1/4 in H x 7-3/8 in W

Features

• Exclusive clean in place undersink valve design and Extends valve life
• Reduces customer calls to replace plugged valves
• Creates a domestic hot water recirculation system without dedicated return loop piping
• Easy to retrofit to existing plumbing system
• Conserves water by greatly reducing the time it takes to get hot water
• Analog pump timer allows you to set the system to work during peak hours or to work continuously
