Tjernlund IL

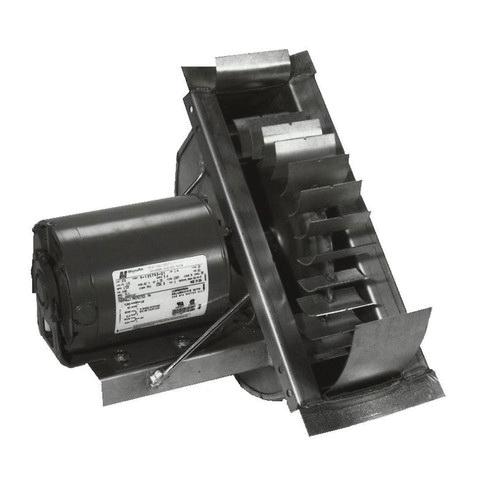

Tjernlund Auto Draft IL Draft Inducer, 115 V, 5.4 A, 1/4 hp, 14 in Vent, 1725 rev/min Speed
Brand: Tjernlund
Item No: IL
Sign In for Availability
Description
Tjernlund in-line draft inducers assure positive draft when restricted boilers and furnaces, poor chimneys or negative pressures in buildings prevent proper exhaust of combustion gases. The venturi action starts air moving up the stack instantly and keeps it moving smoothly. These units are quick and easy to install and completely automatic in operation. In-line draft inducers are built for long-lasting, trouble-free service and available in sizes and capacities to meet virtually all heating system requirements. The Vari-Draft control permits adjustment to individual job requirements.
Tjernlund Auto Draft Inducer, 147000 at 390 deg F Gas, 82500 at 530 deg F Oil BTU, 740 cu-ft/min at 390 deg F Gas, 453 cu-ft/min at 530 deg F Oil, 5.4 A, 115 V, 60 Hz, 1/4 hp, 14 in Vent, 1725 rev/min Speed, 14-3/4 in W x 17 in H x 10 in D
Features
- 1 year warranty
Specifications
|
Amperage Rating |
5.4 A |
|
BTU Rating |
147000 at 390 deg F Gas, 82500 at 530 deg F Oil |
|
CFM Rating |
740 cfm at 390 deg F Gas, 453 cfm at 530 deg F Oil |
|
Dimensions |
14-3/4 in W x 10 in D x 17 in H |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/4 hp |
|
Speed Rating |
1725 rpm |
|
Vent Size |
14 in |
|
Voltage Rating |
115 V |
