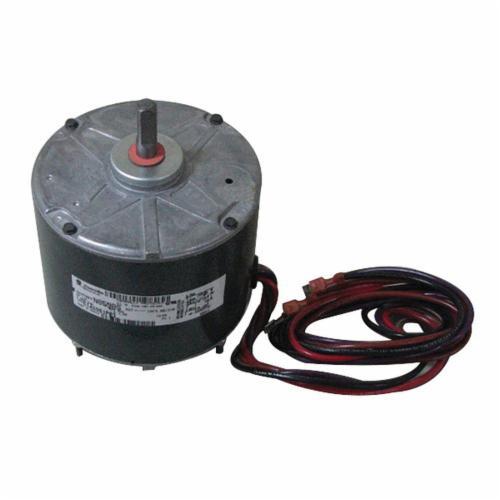

TRANE® MOT03420
TRANE® MOT03420 Condenser Fan Motor, 200 to 230 V, 1.5 A, 1/5 hp, 825 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame
Brand: TRANE®
Item No: MOT03420
Sign In for Availability
Description
TRANE® Condenser Fan Motor, 200 to 230 V, 1.5 A, 1/5 hp, 825 rpm, 1 ph Phase, 60 Hz, 48 Frame, Counter-Clockwise Rotation, 2 Speed, Sleeve Bearing, 8 Poles
Features
- Capacitor 5 uF at 370 VAC
Specifications
|
Amperage Rating |
1.5 A |
|
Bearing Type |
Sleeve |
|
Frame Size |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/5 hp |
|
Number of Poles |
8 |
|
Number of Speeds |
2 |
|
Phase |
1 ph |
|
Rotation Type |
Counter-Clockwise |
|
Speed Rating |
825 rpm |
|
Voltage Rating |
200 to 230 V |
