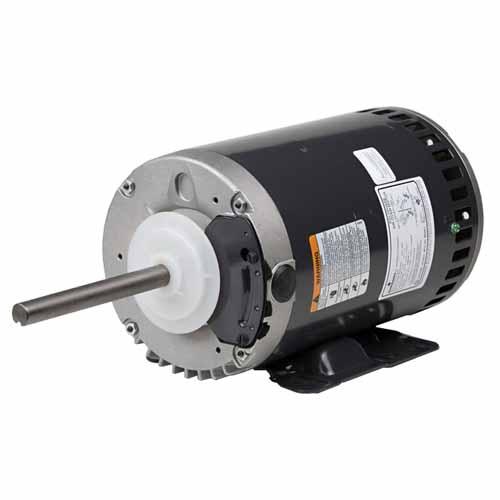

US Motors® 1820H
US Motors® 1820H Condenser Fan Motor, 208 to 230/460 VAC, 4.2/2.1 A Full Load, 1 hp, 1140 rpm Speed, 3 ph -Phase, 60 Hz
Brand: US Motors®
Item No: 1820H
Sign In for Availability
Description
US Motors® Condenser Fan Motor, 208 to 230/460 VAC, 4.2/2.1 A Full Load, 1 hp, 1140 rpm, 3 ph Phase, 60 Hz, Open Drip-Proof Motor Enclosure, 56Z Frame, 5/8 in Dia x 6 in L Shaft, Reversible Rotation, 1 Speed, Sealed Ball Bearing, Rigid Base Mounting, F Insulation Class, 77.8 % Efficiency, 1 Service Factor, Flat, Keyway Shaft Design, Rolled Steel, 70 deg C, 14.8 in L
Specifications
|
Amperage Rating |
4.2/2.1 A Full Load |
|
Bearing Type |
Sealed Ball |
|
Dimensions |
14.8 in L |
|
Efficiency |
77.8 % |
|
Frame Size |
56Z |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1 hp |
|
Insulation Class |
F |
|
Material |
Rolled Steel |
|
Motor Enclosure Type |
Open Drip-Proof |
|
Mounting Type |
Rigid Base |
|
Number of Speeds |
1 |
|
Phase |
3 ph |
|
Rotation Type |
Reversible |
|
Service Factor |
1 |
|
Shaft Design |
Flat, Keyway |
|
Shaft Size |
5/8 in Dia x 6 in L |
|
Speed Rating |
1140 rpm |
|
Temperature Rating |
70 deg C |
|
Voltage Rating |
208 to 230/460 VAC |
