US Motors® 2243

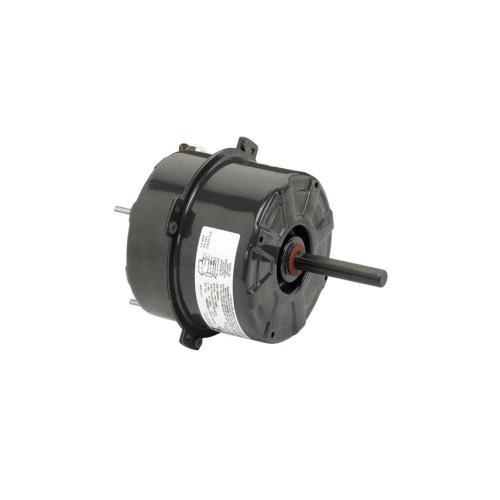

US Motors® 2243 Condenser Fan Motor, 208 to 230 V, 0.75 A, 1/10 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz, 42Y Frame
Brand: US Motors®
Item No: 2243
Sign In for Availability
Description
US Motors® Condenser Fan Motor, 208 to 230 V, 0.75 A, 1/10 hp, 1075 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 42Y Frame, 0.5 in Dia x 2.7 in L Shaft, Reversible Rotation, 1 Speed, Ball Bearing, Shaft Down, Stud Mounting, Rolled Steel, 5 in Dia x 6.8 in L
Features
- 42 in lead length
- Shaft down-mount
- 8-32 studs
- Designed for use with 370 VAC capacitor
- Automatic reset thermal overload protection
Specifications
|
Amperage Rating |
0.75 A |
|
Bearing Type |
Ball |
|
Dimensions |
5 in Dia x 6.8 in L |
|
Frame Size |
42Y |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/10 hp |
|
Material |
Rolled Steel |
|
Motor Enclosure Type |
Totally Enclosed Air Over |
|
Mounting Type |
Shaft Down, Stud |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Rotation Type |
Reversible |
|
Shaft Size |
0.5 in Dia x 2.7 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
208 to 230 V |
