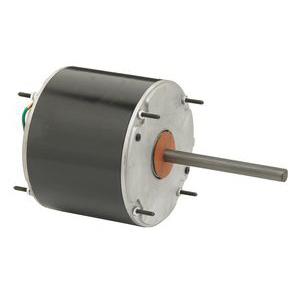

US Motors® 3738
US Motors® K055TDP8454014B 3738 PEP Condenser Fan Motor, 460 V, 1.4 A, 1/2 hp, 1075 rpm Speed, 400 W, 1 ph -Phase
Brand: US Motors®
Item No: 3738 MOTOR
Sign In for Availability
Description
US Motors® PEP Condenser Fan Motor, Model: K055TDP8454014B, 460 V, 1.4 A, 1/2 hp, 1075 rpm, 400 W, 1 ph Phase, 50 Hz, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 6 in L Shaft, Reversible Rotation, Ball Bearing, Stud Mounting, B Insulation Class, 1 Service Factor, 6 Poles, Rolled Steel Frame, 70 deg C, 10.6 in L
Specifications
|
Amperage Rating |
1.4 A |
|
Bearing Type |
Ball |
|
Dimensions |
10.6 in L |
|
Frame Size |
48 |
|
Frequency Rating |
50 Hz, 60 Hz |
|
HP Rating |
1/2 hp |
|
Insulation Class |
B |
|
Material |
Rolled Steel Frame |
|
Model |
K055TDP8454014B |
|
Motor Enclosure Type |
Totally Enclosed Air Over |
|
Mounting Type |
Stud |
|
Number of Poles |
6 |
|
Phase |
1 ph |
|
Power Rating |
400 W |
|
Rotation Type |
Reversible |
|
Service Factor |
1 |
|
Shaft Size |
1/2 in Dia x 6 in L |
|
Speed Rating |
1075 rpm |
|
Temperature Rating |
70 deg C |
|
Voltage Rating |
460 V |
