US Motors® 3846

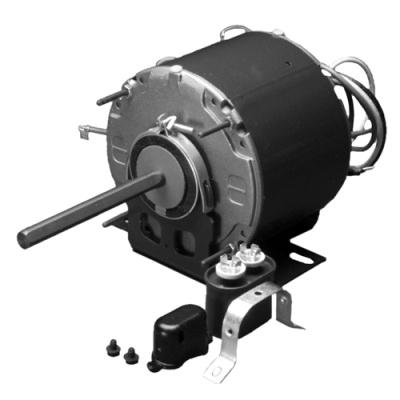

US Motors® KA55SAM1137802B 3846 Condenser Fan Motor, 230 V, 1.9 A, 1/4 hp, 1075 rpm Speed, 0.2 kW, 1 ph -Phase, 60 Hz
Brand: US Motors®
Item No: 3846
Sign In for Availability
Description
US Motors® Condenser Fan Motor, Model: KA55SAM1137802B, 230 V, 1.9 A, 1/4 hp, 1075 rpm, 0.2 kW, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia Shaft, Reversible Rotation, 1 Speed, Ball Bearing, Resilient Base Mounting, B Insulation Class, 1 Service Factor, 6 Poles, Rolled Steel Frame, 60 deg C, 5.6 in Dia x 4.6 in L
Features
- High-efficiency economizer rated
- Double flats on shaft
- Capacitor mounting holes in frame band
- Bearings have all angle thrust system
- Enclosed end shield at shaft-end
- Green ground lead
- Extended mounting studs
- Water slinger on shaft
Specifications
|
Amperage Rating |
1.9 A |
|
Bearing Type |
Ball |
|
Dimensions |
5.6 in Dia x 4.6 in L |
|
Frame Size |
48Y |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/4 hp |
|
Insulation Class |
B |
|
Material |
Rolled Steel Frame |
|
Model |
KA55SAM1137802B |
|
Motor Enclosure Type |
Open Air Over |
|
Mounting Type |
Resilient Base |
|
Number of Poles |
6 |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
0.2 kW |
|
Rotation Type |
Reversible |
|
Service Factor |
1 |
|
Shaft Size |
1/2 in Dia |
|
Speed Rating |
1075 rpm |
|
Temperature Rating |
60 deg C |
|
Voltage Rating |
230 V |
