US Motors® 8100

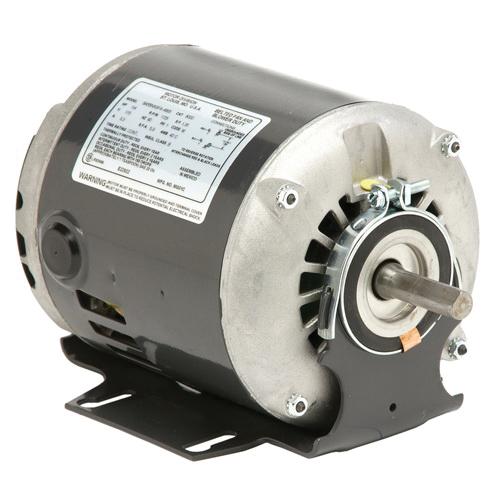

US Motors® SA55SFB4866722B 8100 Blower Motor, 115 V, 6.4 A Full Load, 0.33 hp, 1725 rpm Speed, 0.3 kW, 1 ph -Phase
Brand: US Motors®
Item No: 8100
Sign In for Availability
Description
US Motors® Blower Motor, Model: SA55SFB4866722B, 115 V, 6.4 A Full Load, 0.33 hp, 1725 rpm, 0.3 kW, 1 ph Phase, 60 Hz, Open Drip-Proof Motor Enclosure, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Counter-Clockwise Lead End Rotation, 1 Speed, Resilient Mounting, Belt Drive, B Insulation Class, 4 Poles, 1.35 Service Factor, 44.17 ft-oz Break Down, 19.19 ft-oz Locked Rotor Torque, 40 deg C, 5.63 in Dia x 9.44 in L
Features
- Automatic reset thermal protection
Specifications
|
Amperage Rating |
6.4 A Full Load |
|
Dimensions |
5.63 in Dia x 9.44 in L |
|
Drive Type |
Belt |
|
Frame Size |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
0.33 hp |
|
Insulation Class |
B |
|
Model |
SA55SFB4866722B |
|
Motor Enclosure Type |
Open Drip-Proof |
|
Mounting Type |
Resilient |
|
Number of Poles |
4 |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
0.3 kW |
|
Rotation Type |
Counter-Clockwise Lead End |
|
Service Factor |
1.35 |
|
Shaft Size |
1/2 in Dia x 1-1/2 in L |
|
Speed Rating |
1725 rpm |
|
Temperature Rating |
40 deg C |
|
Torque Rating |
44.17 ft-oz Break Down, 19.19 ft-oz Locked Rotor |
|
Voltage Rating |
115 V |
