US Motors® 9628

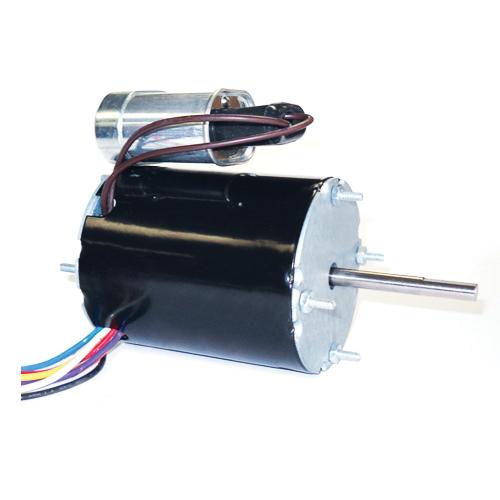

US Motors® 9628 Motor, 115 VAC, 0.6 A, 1/30 to 1/40 hp, 1550 rpm Speed, 1 ph -Phase, 60 Hz, 33 Frame
Brand: US Motors®
Item No: 9628
Sign In for Availability
Description
US Motors® Motor, 115 VAC, 0.6 A, 1/30 to 1/40 hp, 1550 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 33 Frame, 5/16 in Dia x 2-1/4 in L Shaft, REV Rotation, Direct Drive Blower, Ball Bearing, 4 Poles, 3.3 in Dia
Features
- Reversible rotation allows broader use and reduction in inventory
- Ball bearing for improved efficiency at cold temperature
- Capacitor included with motor
Specifications
|
Amperage Rating |
0.6 A |
|
Bearing Type |
Ball |
|
Blower Type |
Direct Drive |
|
Dimensions |
3.3 in Dia |
|
Frame Size |
33 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/30 to 1/40 hp |
|
Motor Enclosure Type |
Totally Enclosed Air Over |
|
Number of Poles |
4 |
|
Phase |
1 ph |
|
Rotation Type |
REV |
|
Shaft Size |
5/16 in Dia x 2-1/4 in L |
|
Speed Rating |
1550 rpm |
|
Voltage Rating |
115 VAC |
