US Motors® EC5472FP

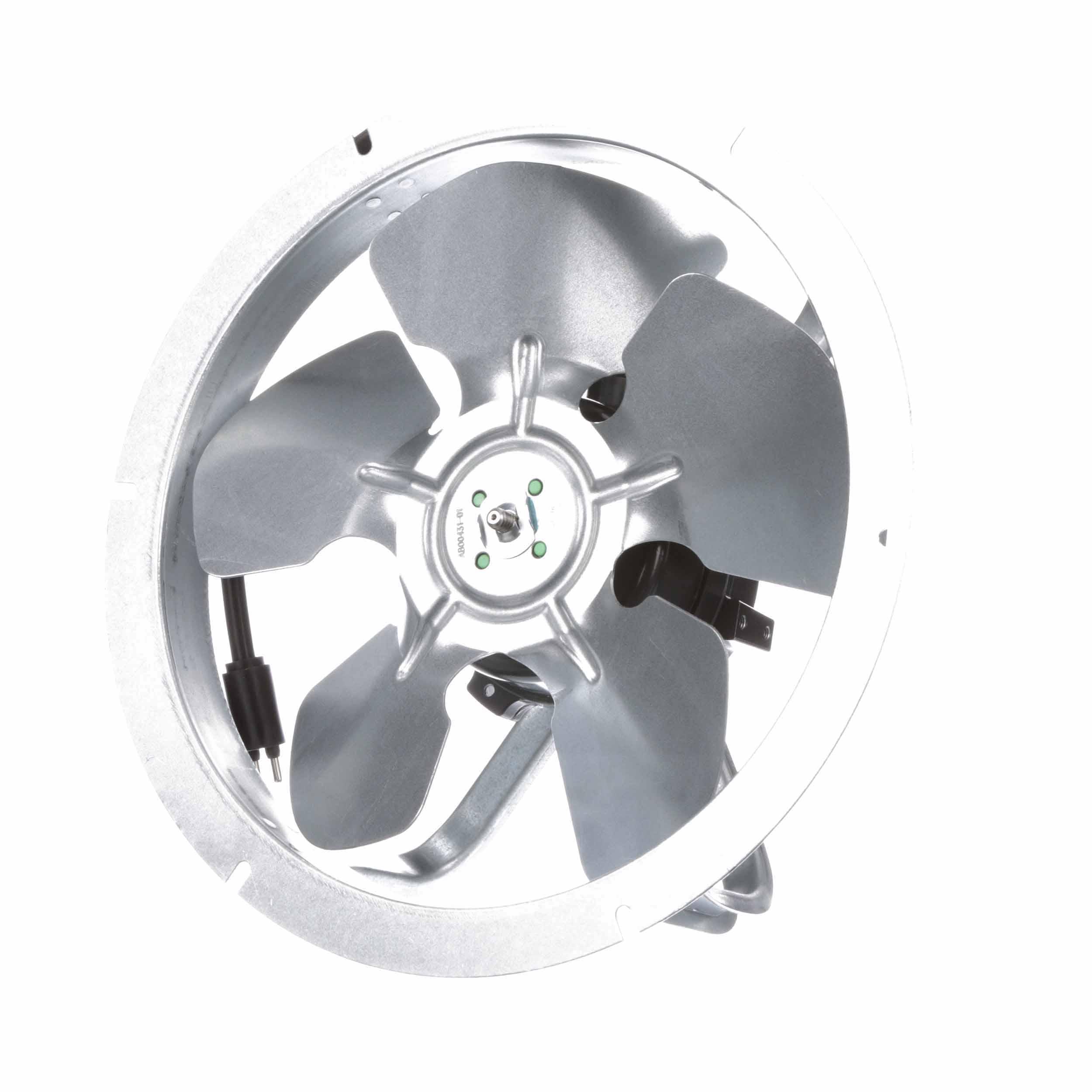

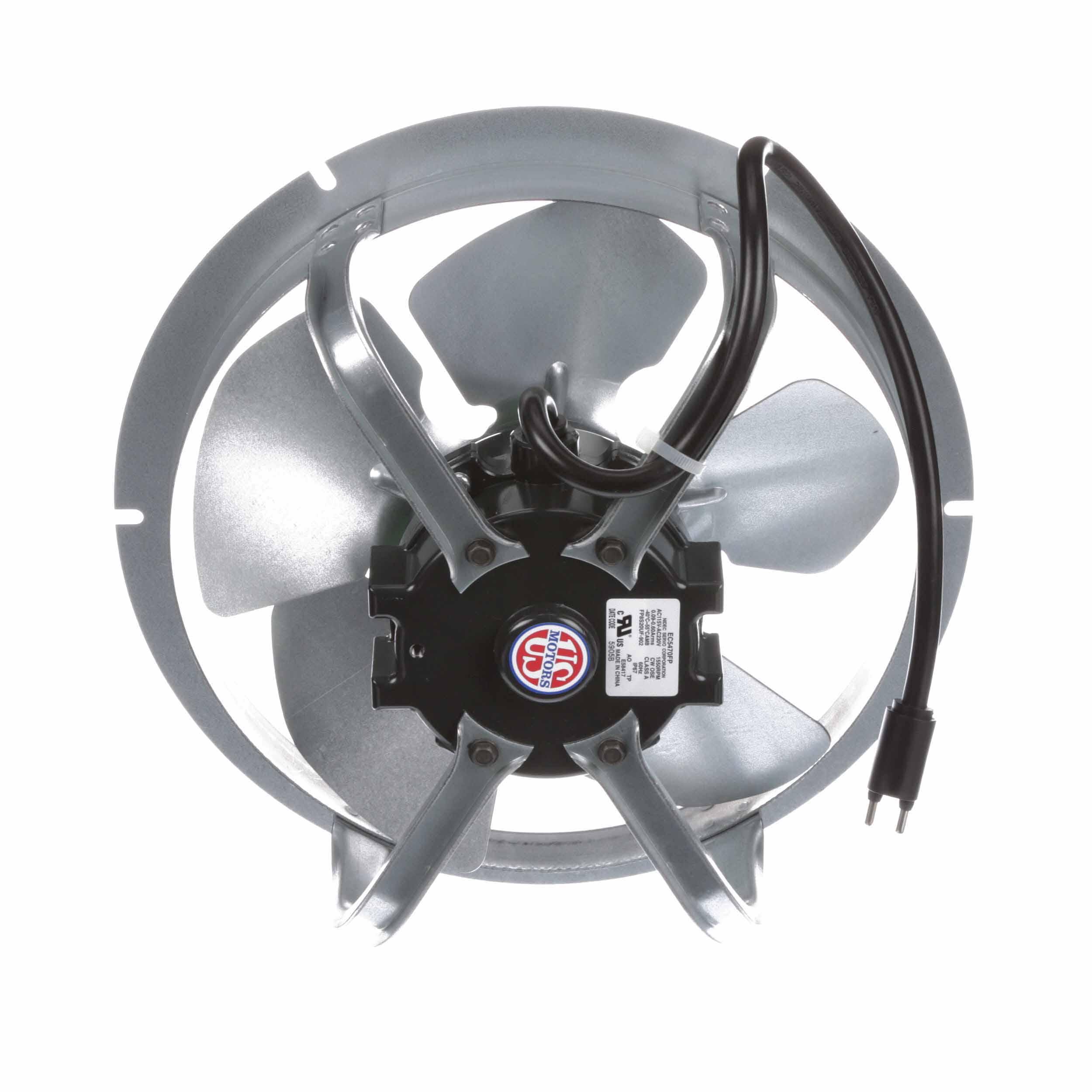

US Motors® EC5472FP Fan Assembly, 115 to 230 VAC, 0.2 to 0.75 A, 1550 to 1725 rpm Speed, 4 to 25 W, 1 ph -Phase
Brand: US Motors®
Item No: EC5472FP
Sign In for Availability
Description
US Motors® Fan Assembly, 115 to 230 VAC, 0.2 to 0.75 A, 1550 to 1725 rpm, 4 to 25 W, 1 ph Phase, 50 Hz, 60 Hz, CWOSE Rotation, 1 Speed, 360 cfm CFM Rating, Totally Enclosed Air Over Enclosure, 70 % Efficiency, B Insulation Class, 1 Service Factor, Ball Bearing, -40 to 55 deg C Ambient, 58 mm Dia
Features
- Automatic thermal overload protection
- IP67 capable of being submerged in water up to 30 min
- Dual voltage no connection change required
Specifications
|
Amperage Rating |
0.2 to 0.75 A |
|
Bearing Type |
Ball |
|
CFM Rating |
360 cfm |
|
Dimensions |
58 mm Dia |
|
Efficiency |
70 % |
|
Enclosure Type |
Totally Enclosed Air Over |
|
Frequency Rating |
50 Hz, 60 Hz |
|
Insulation Class |
B |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
4 to 25 W |
|
Rotation Type |
CWOSE |
|
Service Factor |
1 |
|
Speed Rating |
1550 to 1725 rpm |
|
Temperature Rating |
-40 to 55 deg C Ambient |
|
Voltage Rating |
115 to 230 VAC |
