VICTOR® by ESAB® PFH-580

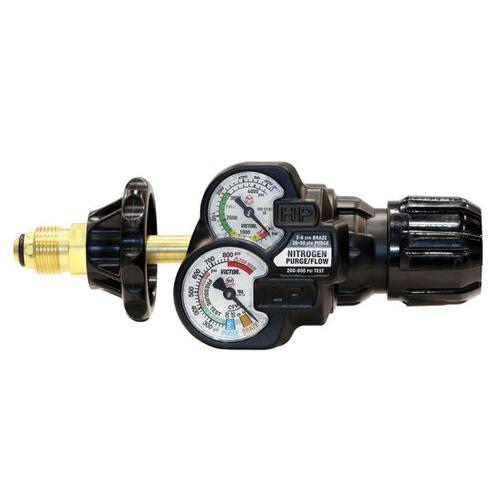

VICTOR® by ESAB® EDGE™ 2.0 ESS32 PFH Series PFH-580 Pressure-Flow Hybrid Regulator, Nitrogen Gas, 1 -Stage
Brand: VICTOR® by ESAB®
Item No: PFH-580
Sign In for Availability
Description
The EDGE™ 2.0 Series ESS32 PFH Pressure Flow Hybrid single stage cylinder regulator delivers unmatched convenience, safety and performance. Newly developed dual stage orifice technology allows one regulator to control both pressure and flow, allowing complete control of nitrogen for purging, brazing and high pressure testing.
VICTOR® by ESAB® EDGE™ 2.0 Pressure-Flow Hybrid Regulator, ESS32 PFH Series, Regulator Supply Type: Cylinder, 1 -Stage, Gas Type: Nitrogen, Inlet Connection Size: 1/4 in, Inlet Connection Type: SAE Flared, Outlet Connection Size: 1/4 in, Outlet Connection Type: SAE Flared, Delivery Pressure Range: 800 psi, Maximum Inlet Pressure: 3000 psig, 0 to 120 deg F Operating Temperature
Features
- Nitrogen CGA-580 tool-less connection
- Fully enclosed, highly visible modular gauges for optimum clarity with robust metal gauge guard for maximum protection
- SLAM™ (Shock Limitation and Absorption Mechanism) technology built into the adjusting knob, provides additional strength, safety and protection of the regulator
- Up to 800 psi testing pressure
Specifications
|
Additional Information |
0 to 120 deg F Operating Temperature |
|
Delivery Pressure Range |
800 psi |
|
Gas Type |
Nitrogen |
|
Inlet Connection Size |
1/4 in |
|
Inlet Connection Type |
SAE Flared |
|
Maximum Inlet Pressure |
3000 psig |
|
Number of Stages |
1 |
|
Outlet Connection Size |
1/4 in |
|
Outlet Connection Type |
SAE Flared |
|
Regulator Supply Type |
Cylinder |
|
Series |
ESS32 PFH Series |
