Watts Radiant™ 81016550

Description

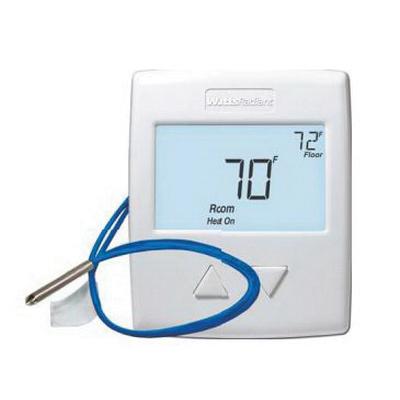

Watts Radiant™ Radiant Thermostat, Model: 519, 10 - 30 VAC/VDC, 50/60 Hz, Relay Switch, 10 kilo-ohm at 77 deg F NTC Thermistor Sensing Element, Backlight Display, 32 - 122 deg F Ambient, Less Than or Equal to 90% RH Non-Condensing Humidity Rating, 3 in W x 3-11/16 in H x 15/16 in D, PVC Plastic, White

Features

• The Watts Radiant thermostat 519 accurately controls the room and/or floor temperature for a hydronic heating zone using pulse width modulation (PWM) technology
• Simple up and down buttons and a display with large type make this thermostat easy to read and use
• Auto heating cycle, radiant floor heating
• Floor and air temperature control, outdoor and floor temperature display
• Freeze protection
• NEMA Type 1 enclosure
• Indoor use only ambient conditions
• 1.8 VA standby, 56 VA max fully loaded, class 2 power
• 2 A at 30 VAC/VDC, class 2 circuits relay
• A floor sensor is included to measure floor temperature to protect the floor from overheating and enhance comfort
