Webstone H-58614

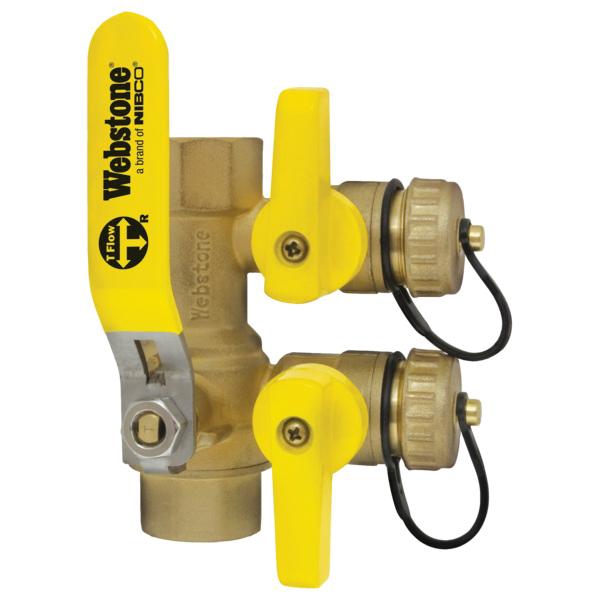

Webstone Pro-Pal H-58614 Purge and Fill Valve With (2) Hi-Flow Hose Drains, 1 in Nominal, C Connection, 600 psi Pressure
Brand: Webstone
Item No: H-58614
Sign In for Availability
Description
Webstone Pro-Pal Purge and Fill Valve, Series: H-5861 Series, 1 in Nominal, C Connection, Full Port, 600 psi, 1/2 in Orifice, 4-3/4 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Forged Brass Body, PTFE Seat, Brass Stem, Brass Packing, Steel Handle, 100 deg F
Features
- Pro-Pal purge and fill, full port forged brass ball valve, w/(2) hi-flow hose drains, reversible handle and adjustable packing glands
- Simultaneously drain, flush and refill any hydronic, solar or closed loop system
- Reversible handle for added versatility
- Specifically designed for filling and draining glycol/anti-freeze from any point in a hydronic system
- Saves 54 min
- Replaces seven-components
- Eliminates six-leak paths
- Ball valve with integral spring check saves labor, space and leak paths
- Adjustable packing gland
- Patented technology
Specifications
|
Body Material |
Forged Brass |
|
Connection Type |
C |
|
Handle Material |
Steel |
|
Inlet to Outlet Length |
4-3/4 in |
|
Nominal Size |
1 in |
|
Orifice Size |
1/2 in |
|
Packing Material |
Brass |
|
Port Type |
Full |
|
Pressure Rating |
600 psi |
|
Seat Material |
PTFE |
|
Series |
H-5861 Series |
|
Stem Material |
Brass |
|
Temperature Rating |
100 deg F |
|
Top to Inlet Center |
2-9/16 in |
