Webstone H-81415

Webstone THE ISOLATOR H-81415 Uni-Flange Ball Valve, 1-1/4 in, Press x Rotating Flange, 250 psi, Forged Brass

Brand: Webstone

Item No: H-81415

Sign In for Availability
loading

Description

The features and benefits you trust in our original Isolator line, with two-versatile enhancements. The 360 deg flange rotation allows rotation to any degree necessary for your installation and the multi-function drain that makes the isolator the only valve that drains from both sides of the pump.

Webstone THE ISOLATOR Uni-Flange Ball Valve, Series: 4141 Series, 1-1/4 in Nominal, Press x Rotating Flange Connection, 250 psi, Forged Brass, 250 deg F, 4.44 in W, Additional Information: Full Port

Features

  • Easily isolates the pump for replacement
  • Prevents electrolysis and eliminates galvanic corrosion

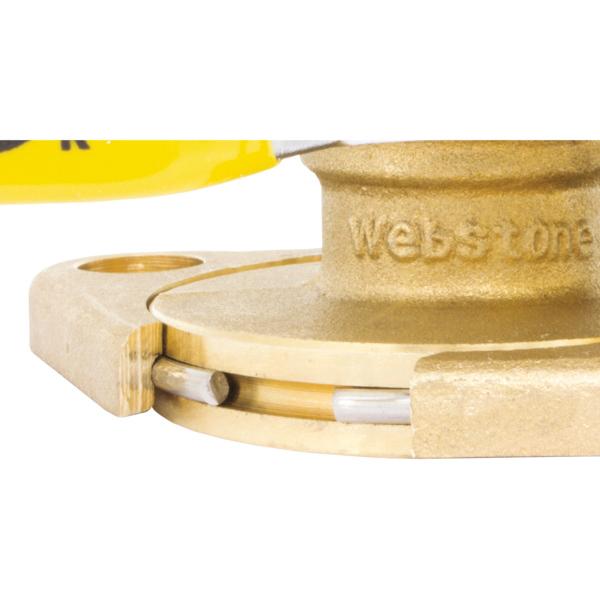

  • Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation
  • Flange features a conical inlet to minimize turbulence

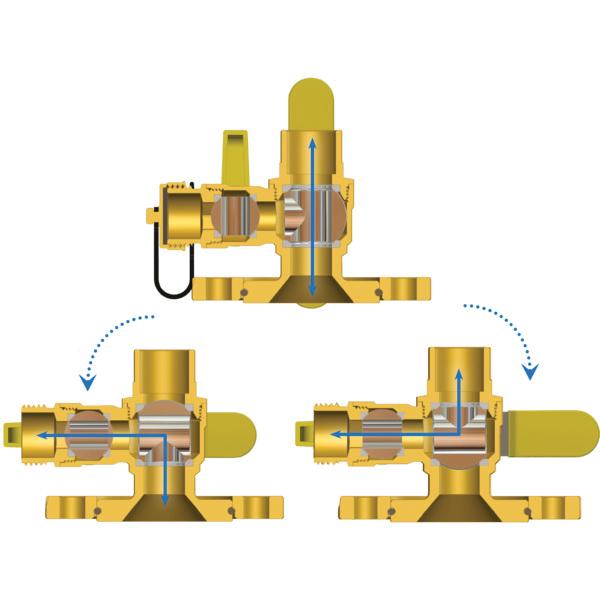

  • Multi-function drain makes the isolator the only valve that drains from either side of the pump
  • Fits virtually any standard circulator pump
  • Saves 63 min
  • Replaces eight-components
  • Eliminates seven-leak paths
  • Ball valve with integral spring check saves labor, space and leak paths
  • Adjustable packing gland

Specifications

Additional Information

Full Port

Connection Type

Press x Rotating Flange

Dimensions

4.44 in W

Material

Forged Brass

Nominal Size

1-1/4 in

Pressure Rating

250 psi

Series

4141 Series

Temperature Rating

250 deg F

Documentation

Specification Sheet
