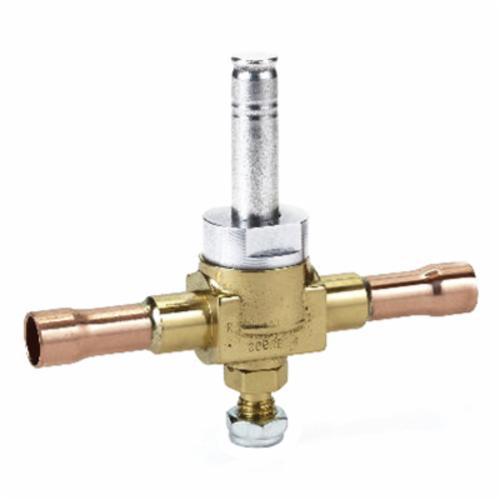

WHITE-RODGERS™ 49163
WHITE-RODGERS™ 49163 Solenoid Valve, 1/2 in Nominal, ODF Extended End Connection, 2-Port/Way, 250 deg F Fluid
Brand: WHITE-RODGERS™
Item No: 200RB-4T4T-VLC
Sign In for Availability
Description
Emerson climate technologies refrigeration solenoid valves have the lowest external leakage rates in the industry are less susceptible to scoring don't hold residual magnetism and provide trouble-free operation due to their fail safe design.
WHITE-RODGERS™ Solenoid Valve, 1/2 in Nominal, ODF Extended End Connection, NC Configuration, 500 lbf/sq-in Working, 300 lbf/sq-in Differential Pressure, 1/4 in Orifice, 2 Ports/Ways, PTFE O-Ring Seal, 250 deg F Fluid, 5 in L x 3.41 in H Dimensions
Features
- Less coil
- Mounting stud
- One coil fits all valve sizes
- Extended ends for easy installation
- Long life molded coils
- PTFE O-ring for superior external sealing
Specifications
|
Configuration |
NC |
|
Connection Type |
ODF Extended End |
|
Dimensions |
5 in L x 3.41 in H |
|
Nominal Size |
1/2 in |
|
Number of Ports/Ways |
2 |
|
Orifice Size |
1/4 in |
|
Pressure Rating |
500 lbf/sq-in Working, 300 lbf/sq-in Differential |
|
Seal Material |
PTFE O-Ring |
|
Temperature Rating |
250 deg F Fluid |
