WHITE-RODGERS™ 36C74 913

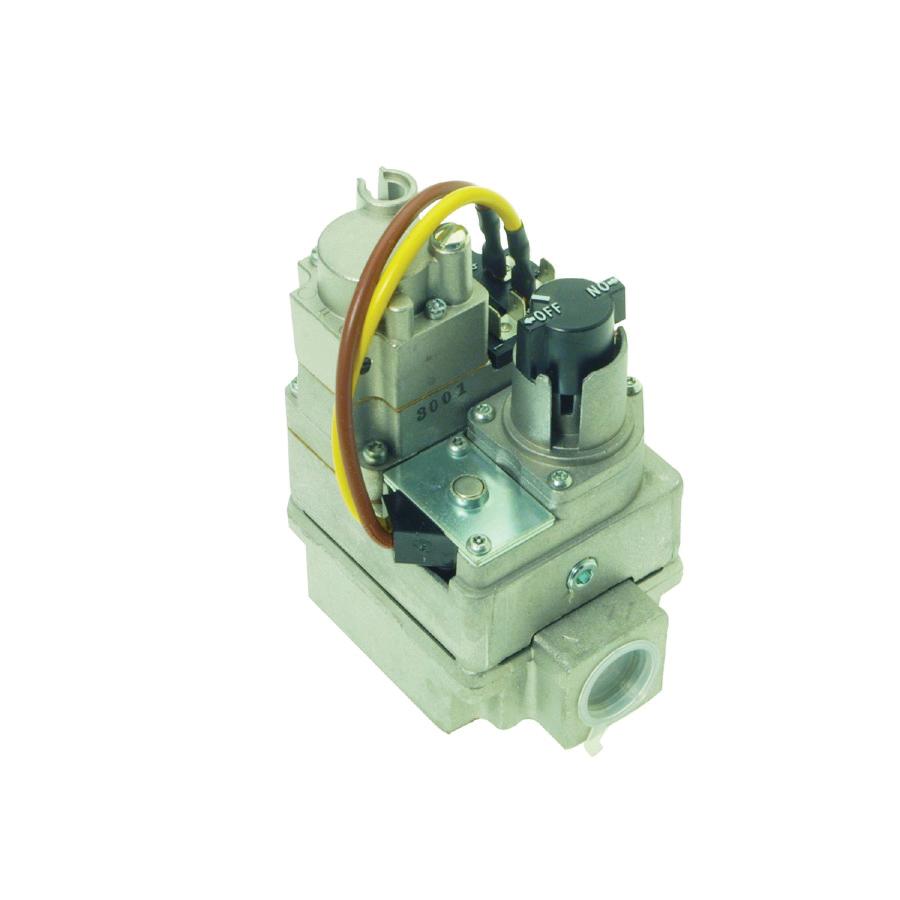

WHITE-RODGERS™ 36C74 913 Combination Gas Control Valve, 3/4 in, 1/2 psi
Brand: WHITE-RODGERS™
Item No: 36C74-913
Sign In for Availability
Description
WHITE-RODGERS™ Combination Gas Control Valve, 36C Series, 3/4 in Nominal, 1/2 psi, Direct Spark, Hot Surface, Intermittent Ignition, 0.23 A, 24 VAC, 280000 Btu/hr for AGA Standard Natural Gas 1000 Btu/cu-ft at 1 in Pressure Drop Nominal Capacity, Natural Gas Fuel, NPT Pressure Tap, Compression Tube Pilot Hose Connection, -40 to 175 deg F Ambient
Features
- 3-1/2 in full outlet pressure
- Plugged pilot
- Reducer bushings
- Two 42 in extra leads
Specifications
|
Amperage Rating |
0.23 A |
|
Fuel Type |
Natural Gas |
|
Hose Connection Type |
NPT Pressure Tap, Compression Tube Pilot |
|
Ignition Type |
Direct Spark, Hot Surface, Intermittent |
|
Nominal Capacity |
280000 Btu/hr for AGA Standard Natural Gas 1000 Btu/cu-ft at 1 in Pressure Drop |
|
Nominal Size |
3/4 in |
|
Pressure Rating |
1/2 psi |
|
Series |
36C Series |
|
Temperature Rating |
-40 to 175 deg F Ambient |
|
Voltage Rating |
24 VAC |
