WHITE-RODGERS™ 36C84 912

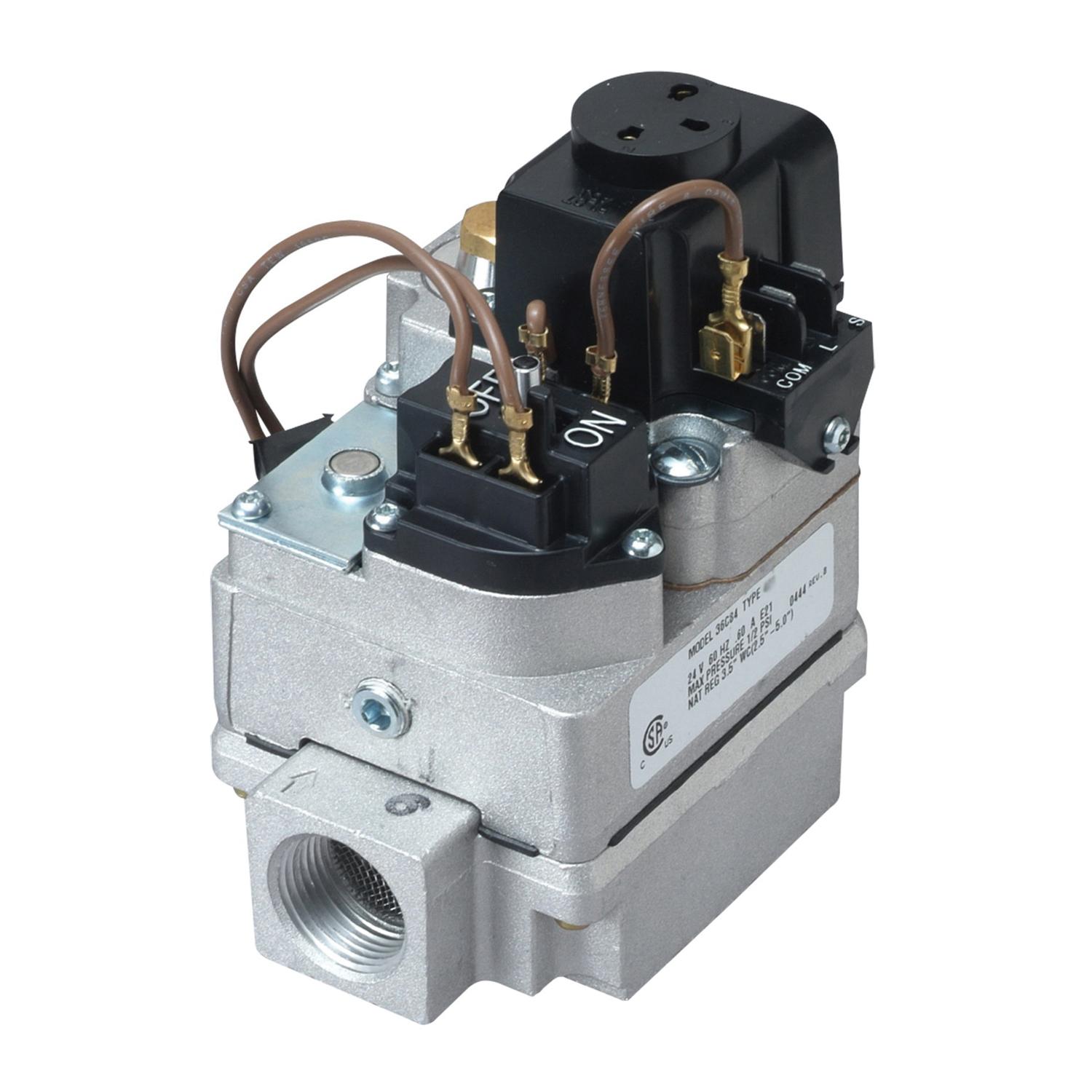

WHITE-RODGERS™ 36C84 912 Combination Gas Control Valve, 3/4 in, 1/2 psi
Brand: WHITE-RODGERS™
Item No: 36C84-912
Sign In for Availability
Description
WHITE-RODGERS™ Combination Gas Control Valve, 36C Series, 3/4 in Nominal, 1/2 psi, Cycle Pilot Ignition, 1/4 in Quick-Connect Terminal Electrical Connection, 0.6 A, 24 VAC, 280000 Btu/hr for Standard Natural Gas 1000 Btu/cu-ft, 453600 Btu/hr fro LP Gas 2500 Btu/cu-ft at 1 in Pressure Drop Nominal Capacity, LP Gas, Natural Gas Fuel, -40 to 175 deg F Ambient
Features
- Plug-in pilot socket on outlet side
- Reducer bushings
- Convertible natural to LP
- With redundant pilot solenoid main gas regulator, integral gas pressure switch and electrical connection on the gas valve for mercury flame sensor connection
Specifications
|
Amperage Rating |
0.6 A |
|
Electrical Connection |
1/4 in Quick-Connect Terminal |
|
Fuel Type |
LP Gas, Natural Gas |
|
Ignition Type |
Cycle Pilot |
|
Nominal Capacity |
280000 Btu/hr for Standard Natural Gas 1000 Btu/cu-ft, 453600 Btu/hr fro LP Gas 2500 Btu/cu-ft at 1 in Pressure Drop |
|
Nominal Size |
3/4 in |
|
Pressure Rating |
1/2 psi |
|
Series |
36C Series |
|
Temperature Rating |
-40 to 175 deg F Ambient |
|
Voltage Rating |
24 VAC |
