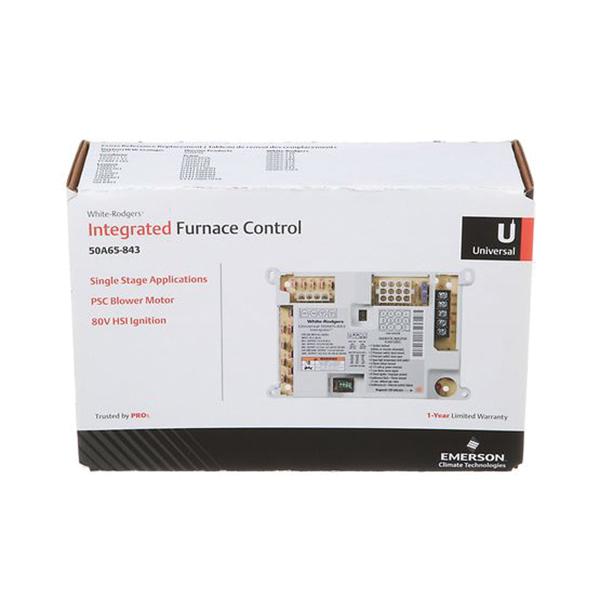

WHITE-RODGERS™ 50A65 843S1
WHITE-RODGERS™ 50A65 843S1 Universal 1-Stage Integrated Furnace Control, 24/120 VAC, 0.45 A, 50/60 Hz
Brand: WHITE-RODGERS™
Item No: 50A65-843
Sign In for Availability
Description
WHITE-RODGERS™ Universal 1-Stage Integrated Furnace Control, 24/120 VAC, 0.45 A, 50/60 Hz, -40 to 175 deg F, Pre Purge Time: 30 s, Flush Mount, For Use With PSC Blower Motors, 50A65-843 Model, 5 to 93% Humidity, 6.9 in L x 4.67 in W x 1.25 in D Dimension, 2 A t 80 V Ignitor Current, 14.5 to 25 LRA at 120 VAC Circulator Relay, 14.5 to 25 LRA at 120 VAC PSC Circulator Relay, 12 mA at 30 VAC ECMx Circulator Relay
Features
- Reduces inventory by providing maximum control replacement coverage
- Select models include a universal 120 V nitride ignitor to allow replacement of 80 V and 120 V controls
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120 V air cleaner output and 120 V humidifier output up to 1 A max
- Factory standard safety timings and adjustable fan delay options
- Additional jumpers to extend the length of the connections
Specifications
|
Additional Information |
50A65-843 Model, 5 to 93% Humidity, 6.9 in L x 4.67 in W x 1.25 in D Dimension, 2 A t 80 V Ignitor Current, 14.5 to 25 LRA at 120 VAC Circulator Relay, 14.5 to 25 LRA at 120 VAC PSC Circulator Relay, 12 mA at 30 VAC ECMx Circulator Relay |
|
Amperage Rating |
0.45 A |
|
Frequency Rating |
50/60 Hz |
|
Mounting Type |
Flush |
|
Pre Purge Time |
30 s |
|
Suitable For Use With |
PSC Blower Motors |
|
Temperature Rating |
-40 to 175 deg F |
|
Voltage Rating |
24/120 VAC |
