WHITE-RODGERS™ 50E47 843S1

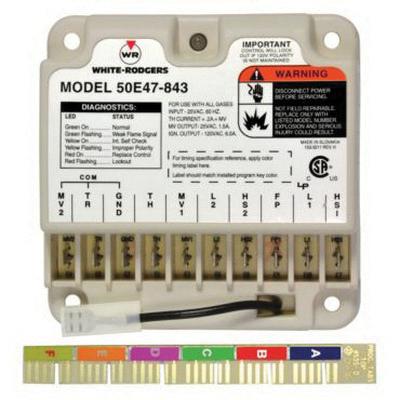

WHITE-RODGERS™ 50E47 843S1 50E47-843 Ignition Control Module, 18 - 30 VAC Input, 25 VAC Nominal, 60 Hz
Brand: WHITE-RODGERS™
Item No: 50E47-843
Sign In for Availability
Description
WHITE-RODGERS™ Ignition Control Module, Model: 50E47-843, 18 - 30 VAC Input, 25 VAC Nominal, 200 mA at 25 VAC and 25 deg C, 60 Hz, 95% RH Non-Condensing Humidity Rating, -40 to 175 deg F, 4.13 in W x 4.13 in H x 1-1/2 in D
Features
- Program keys for easy customization
- Tri-colored LED indicator for diagnostics
- Direct and indirect flame sense compatible
- Universal design for maximum versatility
- 1.5 A at 25 VAC 60 Hz 0.6 pf valve relay, 6 A at 120 VAC 60 Hz resistive
- For silicon carbide igniter
Specifications
|
Amperage Rating |
200 mA at 25 VAC and 25 deg C |
|
Dimensions |
4.13 in W x 4.13 in H x 1-1/2 in D |
|
Frequency Rating |
60 Hz |
|
Humidity Rating |
95% RH Non-Condensing |
|
Model |
50E47-843 |
|
Temperature Rating |
-40 to 175 deg F |
|
Voltage Rating |
18 - 30 VAC Input, 25 VAC Nominal |
