WHITE-RODGERS™ 90 244S1

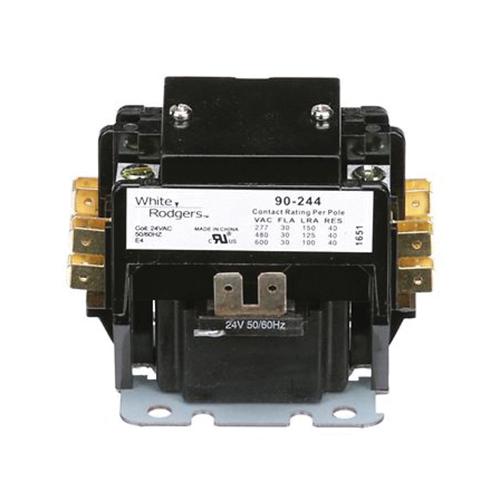

WHITE-RODGERS™ 90 Series 90 244S1 Mechanical Contactor, 24 V Coil, 30 A, 2-Pole
Brand: WHITE-RODGERS™
Item No: 90-244
Sign In for Availability
Description
WHITE-RODGERS™ Mechanical Contactor, Series 90 Series, 24 V, 30 A, 2-Pole, 2 in OAW, 3.38 in OAD, 2-1/2 in OAH, 85 to 110% of Nominal Coil Voltage Operate, Continuous Duty Cycle, Class B Insulation, 50/60 Hz Frequency, -40 to 150 deg F Ambient Operating Temperature
Features
- Low VA coil for cooler operation and increased life
- Quiet operation
- Universal-style mounting bracket fits existing mounting holes
- Double break contacts ensure positive make and break
- Screw terminals or pressure connectors and quad 1/4 in quick connects provided on all models for easy installation
Specifications
|
Additional Information |
85 to 110% of Nominal Coil Voltage Operate, Continuous Duty Cycle, Class B Insulation, 50/60 Hz Frequency, -40 to 150 deg F Ambient Operating Temperature |
|
Amperage Rating |
30 A |
|
Coil Voltage |
24 V |
|
Number of Poles |
2 |
|
Overall Depth |
3.38 in |
|
Overall Height |
2-1/2 in |
|
Overall Width |
2 in |
|
Series |
90 Series |
