WHITE-RODGERS™ 057261

Description

Emerson's TXVs are designed for a wide range of air conditioning, refrigeration, heat pump and chiller applications. Emerson uses stainless steel power elements that are unsusceptible to corrosion. We offer products with conventional, as well as balanced ported designs that are advantageous when applied to systems with large load variations and/or floating head applications. Emerson also manufactures bi-flow designs for use in heat pumps and many of our TXVs have a take apart design for ease of service. Emerson thermal expansion valves cover a wide range of nominal capacity, from 1/2 to 100 ton. The AFA Series is designed for air conditioning and commercial refrigeration applications requiring angle configuration SAE connections. The AFA is ideal for those applications requiring compact size combined with stable and accurate control over wide load and evaporator temperature ranges.

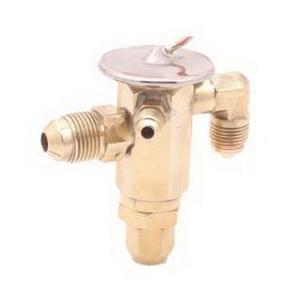

WHITE-RODGERS™ Thermal Expansion Valve, AFA Series, 1/4 x 3/8 to 1/2 in Nominal, SAE Flared Connection, 0.25 ton Nominal Capacity, R-22 Refrigerant, Internal Equalizer, 30 in Capillary Length, Type HC Charge Type, 700 lbf/sq-in, 3.41 in H

Features

• Stainless steel power element eliminates corrosion and prevents valve failure
• External superheat adjustment
• Replaceable inlet strainer
• Wrench flats on inlet and outlet
• Hermetic design
• Adjustable superheat setting
• Medium temperature charge
