WHITE-RODGERS™ 047611

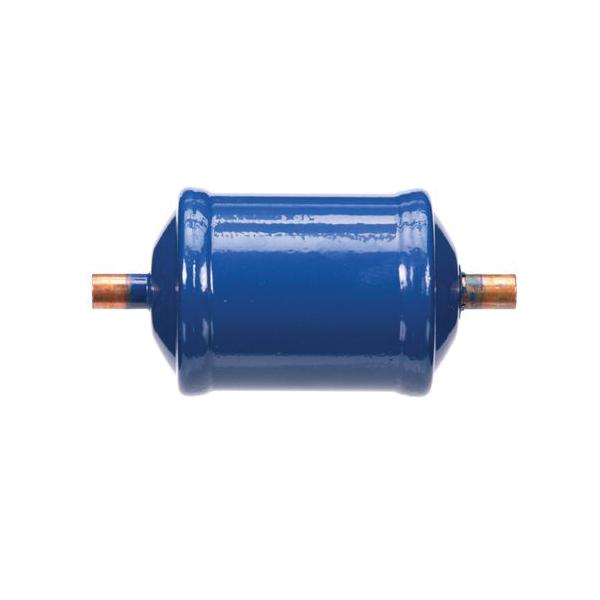

WHITE-RODGERS™ EK Series EK 162 047611 Liquid Line Filter Dryer, 1/4 in, SAE Flared Connection
Brand: WHITE-RODGERS™
Item No: EK-162
Sign In for Availability
Description
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502 and R-507.
WHITE-RODGERS™ Liquid Line Filter Dryer, Series: EK Series, Model: EK 162, 1/4 in, SAE Flared, 680 psig, 20 um, R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507, 16 cu-in Unit Size, Steel, Epoxy Powder Painted
Features
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Corrosion-resistant epoxy powder paint finish
- Approved for POE oils with Copeland™ compressors
- Shock-resistant steel shell construction
Specifications
|
Connection Type |
SAE Flared |
|
Finish |
Epoxy Powder Painted |
|
Material |
Steel |
|
Micron Rating |
20 um |
|
Model |
EK 162 |
|
Pressure Rating |
680 psig |
|
Refrigerant Type |
R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507 |
|
Series |
EK Series |
|
Size |
1/4 in |
|
Unit Size |
16 cu-in |
