WHITE-RODGERS™ 054395

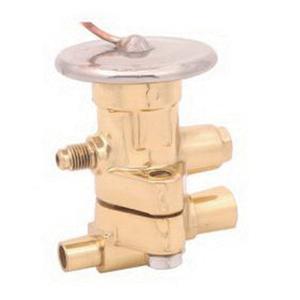

WHITE-RODGERS™ T Series 054395 Thermal Expansion Valve, 1/4 in, SAE Flared, R-22 Refrigerant, 3 ton Nominal
Brand: WHITE-RODGERS™
Item No: TCLE-3-HC
Sign In for Availability
Description
Emerson's TXVs are designed for a wide range of air conditioning, refrigeration, heat pump and chiller applications. Emerson uses stainless steel power elements that are unsusceptible to corrosion. We offer products with conventional, as well as balanced ported designs that are advantageous when applied to systems with large load variations and/or floating head applications. Emerson also manufactures bi-flow designs for use in heat pumps and many of our TXVs have a take apart design for ease of service. Emerson thermal expansion valves cover a wide range of nominal capacity, from 1/2 to 100 ton. The T-Series take apart valves, with adjustable superheat and replaceable, interchangeable components are ideal for original equipment and field replacements in air conditioning, heat pump and refrigeration applications.
WHITE-RODGERS™ Thermal Expansion Valve, T Series, 1/4 in Nominal, SAE Flared Connection, 3 ton Nominal Capacity, R-22 Refrigerant, External Equalizer, 5 ft Capillary Length, Type HC Charge Type, 450 lbf/sq-in
Features
- Take-apart construction for easy field service
- External superheat adjustment
- Bi-flow capability
- Stainless steel power assembly up to 18 ton
- 300 in-lb torque bolt
- Valves less flange
Specifications
|
Capillary Length |
5 ft |
|
Charge Type |
Type HC |
|
Connection Type |
SAE Flared |
|
Equalizer Type |
External |
|
Nominal Capacity |
3 ton |
|
Nominal Size |
1/4 in |
|
Pressure Rating |
450 lbf/sq-in |
|
Refrigerant Type |
R-22 |
|
Series |
T Series |
