ZoomLock® 871302

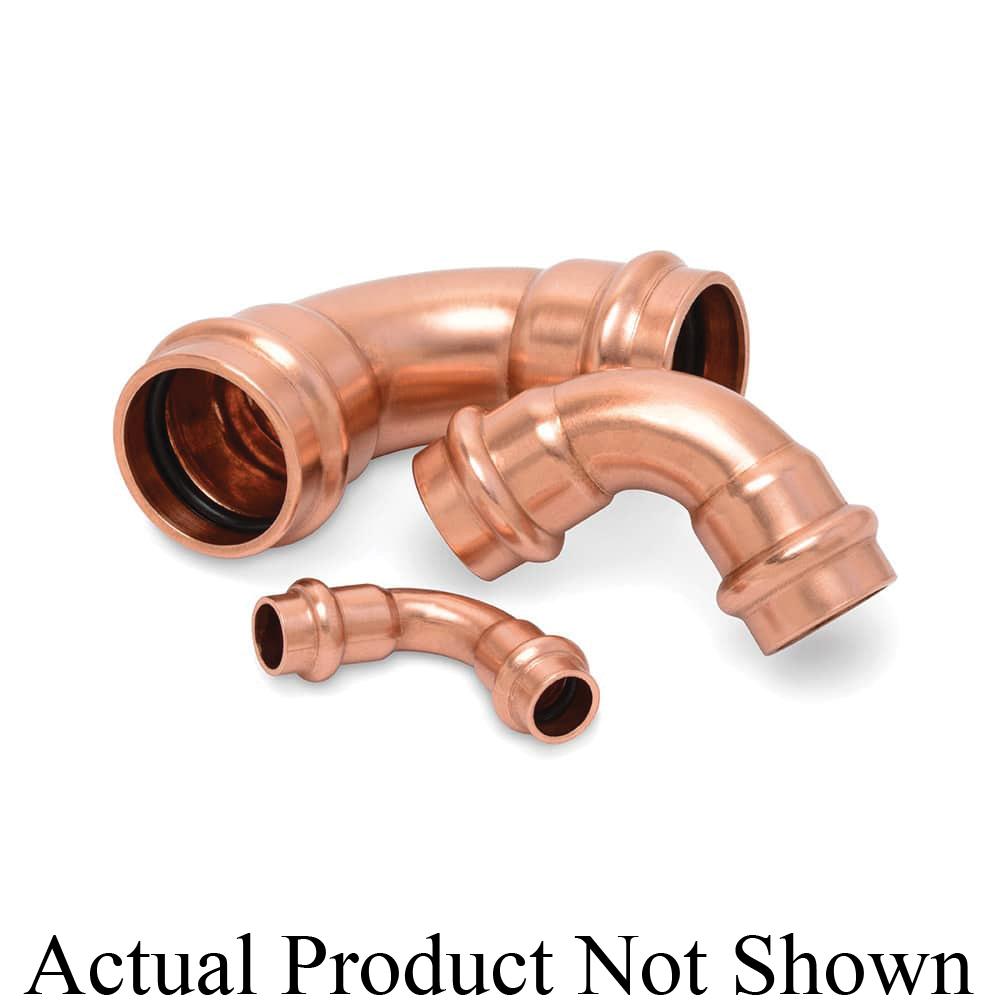

ZoomLock® 871302 90 deg Street Elbow, 3/8 in Press-to-Connect x 3/8 in Press-to-Connect, Copper
Brand: ZoomLock®
Item No: MZK-90SE6-HNBR
Sign In for Availability
Description
Parker® ZoomLock® MAX refrigerant press fittings allow the contractor to successfully make leak-free connections with a press fitting system without the use of a brazing torch. ZoomLock® MAX refrigerant press fittings reduce installation costs, is more repeatable than brazing, improves system cleanliness and creates secure leak-free copper tube connections.
ZoomLock® 90 deg Street Elbow, 90 deg Elbow Fitting, 3/8 in Connection Size 1, Connection Type 1: Press-to-Connect, 3/8 in Connection Size 2, Connection Type 2: Press-to-Connect, Press|Press Connection, Copper, Material Construction: Copper, 700 psi, -40 to 250 deg F, Additional Information: HNBR O-ring, 32, 125, 134a, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20 Refrigerant
Features
- Less equipment and no gas needed
- Safer conditions, no fire hazards
- No hot work permits required
- More environmentally friendly
- No solder related quality issues
- More flexible access to job sites
- No need to nitrogen purge
Specifications
|
Additional Information |
HNBR O-ring, 32, 125, 134a, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20 Refrigerant |
|
Connection Size 1 |
3/8 in |
|
Connection Size 2 |
3/8 in |
|
Connection Type 1 |
Press-to-Connect |
|
Connection Type 2 |
Press-to-Connect |
|
Connection Type |
Press/Press |
|
Fitting Type |
90 deg Elbow |
|
Material Construction |
Copper |
|
Material |
Copper |
|
Pressure Rating |
700 psi |
|
Temperature Rating |
-40 to 250 deg F |
