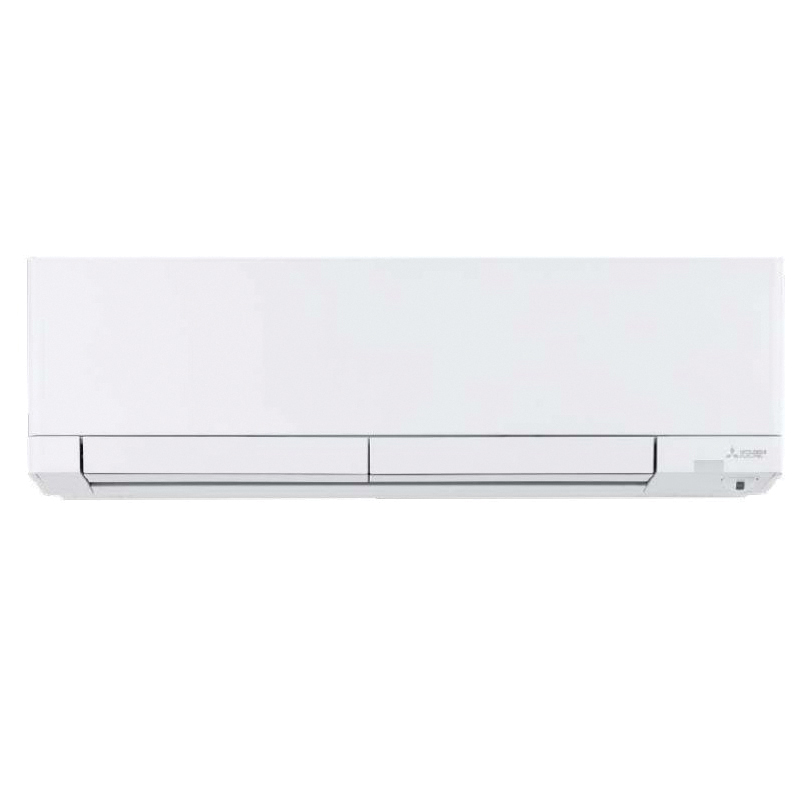

Mitsubishi Electric MSZ-FX06NL MSZ-FX06NL

Mitsubishi Electric MSZ-FX06NL

Mitsubishi Electric MSZ-FX06NL Ductless Mini-Split Indoor Unit, 3/8 in Gas, 1/4 in Liquid, 208/230 V, 1 ph

Brand: Mitsubishi Electric

Item No: MSZ-FX06NL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Ductless Mini-Split Indoor Unit, 3/8 in Gas, 1/4 in Liquid, 208/230 V, 280 W Cooling, 540 W Heating, 60 Hz, 1 ph, 6000 Btu/hr Cooling, 9000 Btu/hr Heating, 420 cfm Cooling, 477 cfm Heating, 21.45 EER Rating, 35 SEER, 13 HSPF, Flared Connection, 15 A Fuse Rating, 40 dBA Cooling, 42 dBA Heating Sound Level, Wall Mounting, Finish: Munsell 1.0Y 9.2/0.2, 67 to 90 deg F, 9-3/4 in Overall Length, 39-9/32 in Overall Width, 12 in Overall Height, R-454B Refrigerant

Features

  • 3D i-see Sensor® (Built-in): The advanced sensor scans each room to produce a complete thermal profile that includes heat signatures based upon size, temperature and movement, then adjusts temperature and airflow based on user preference, and saves energy according to room occupancy
  • Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface of the heat pump, resulting in optimal airflow and easier maintenance
  • Dual Barrier Fusion: The patented Dual Barrier Fusion reduces the collection of contaminants like dust, fibers, smoke, and oil on the vanes of the indoor unit, keeping it clean all year long. Dual Barrier Fusion's shielding power is fused directly into the material of the horizontal and vertical vanes during manufacturing to maintain effectiveness and longevity of the components, and to promote vane cleanliness and reduce odors
  • Dual Vane: Dual-Vane feature allows for airflow direction to be set independently using two vanes, which can then deliver airflow across wide areas of a room, levels of a zone, or to two people in different locations at the same time
  • Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort
  • Multiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
  • Multiple fan speed options: Low, Medium, High, Powerful, Auto
  • Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature
  • Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet
  • Slim Design: Slim wall-mounted indoor units provide zone comfort control
  • Smart Dry+: The Smart Dry+ mode intelligently provides precise humidity control with minimal over-cooling of the space
  • Triple Action Filtration: Standard Microparticle and Electrostatic Enzyme Filters, along with an optional Carbon-based Deodorizing Filter. It effectively removes non-living particulate matter like dust and smoke, utilizes nanotechnology to absorb and neutralize odors, and employs static electricity to attract and filter charged airborne particles
  • Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more

    • Specifications

    Additional Information

    		R-454B Refrigerant

    BTU Rating

    		6000 Btu/hr Cooling, 9000 Btu/hr Heating

    CFM Rating

    		420 cfm Cooling, 477 cfm Heating

    Connection Type

    		Flared

    EER Rating

    		21.45

    Finish

    		Munsell 1.0Y 9.2/0.2

    Frequency Rating

    		60 Hz

    Fuse Rating

    		15 A

    HSPF Rating

    		13

    Mounting Type

    		Wall

    Overall Height

    		12 in

    Overall Length

    		9-3/4 in

    Overall Width

    		39-9/32 in

    Phase

    		1 ph

    Power Rating

    		280 W Cooling, 540 W Heating

    SEER Rating

    		35

    Size

    		3/8 in Gas, 1/4 in Liquid

    Sound Level

    		40 dBA Cooling, 42 dBA Heating

    Temperature Rating

    		67 to 90 deg F

    Voltage Rating

    		208/230 V
