Pdm GBW.UN387812025B
Pdm GelBlack-GelWhite™ GBW.UN387812025B Insulated Suction Line Lineset, 25 ft L, 3/8 in Liquid Line, 7/8 in Suction Line
Brand: Pdm
Item No: GBW.UN387812025B
Sign In for Availability
Description
Pdm GelBlack-GelWhite™ Insulated Suction Line Lineset, 25 ft L, Liquid Line Size: 3/8 in, Suction Line Size: 7/8 in, 700 psi Pressure, 1/2 in Thickness Insulation, ASTM B1003, ASTM B280, ASTM C1427-07, Copper, Black, -94 to 250 deg F, Domestic/Import: Domestic
Features

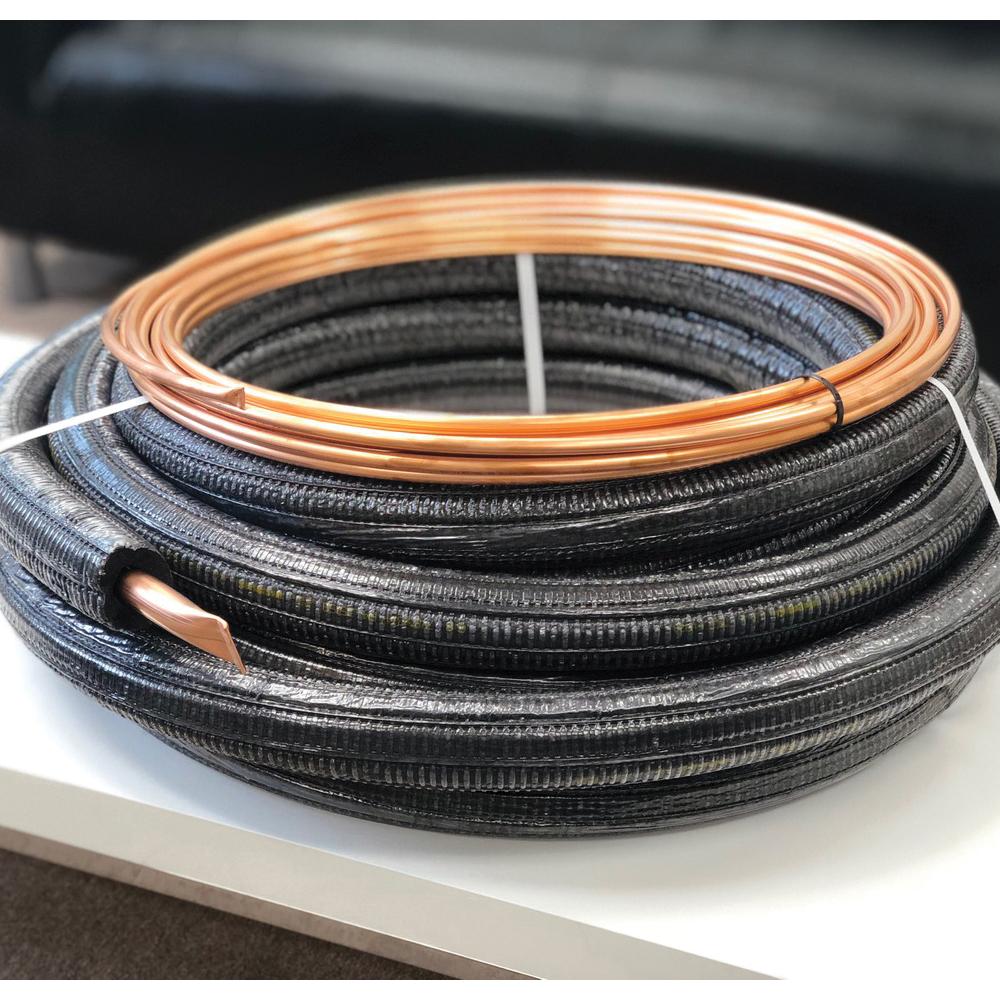

- GelBlack-GelWhite™ provides the perfect lineset solution for unitary systems by combining a high-quality bare copper coil for the liquid line along with a pre-insulated suction line
- Additional polyethylene jacket cover protects foam insulation from tearing during installation process
- Insulation incrementally marked by every foot to ensure accurate initial unit charge and reduce copper waste
- R410 can be used in applications where high pressure gases are used as a refrigeration source
- This product is UL performance verified for UV exposure and successfully tested internally for UV-resistance for a minimum of 5 year
- The insulation can be painted to match the surroundings
Specifications
|
Color |
Black |
|
Domestic/Import |
Domestic |
|
Insulation Thickness |
1/2 in |
|
Length |
25 ft |
|
Liquid Line Size |
3/8 in |
|
Material Standard |
ASTM B1003, ASTM B280, ASTM C1427-07 |
|
Material |
Copper |
|
Pressure Rating |
700 psi |
|
Suction Line Size |
7/8 in |
|
Temperature Rating |
-94 to 250 deg F |
