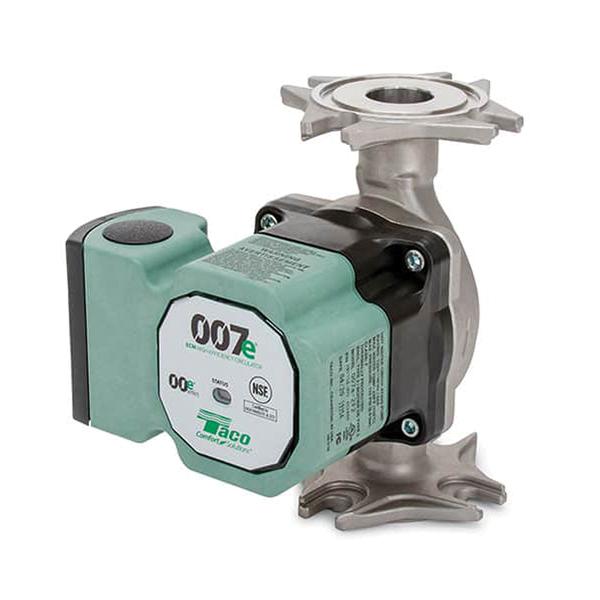

Taco Comfort Solutions® 007E-FE-ECM

Description

The Taco 007e ECM high efficiency circulator is engineered with ECM variable speed technology. Its performance is equivalent to the legendary 007 yet it uses up to 85% less electricity. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. Efficiency aside, the 007e delivers the reliability that made Taco famous. Install it forget it.

Taco Comfort Solutions® High Efficiency Circulator, 16 gpm Flow Rate, 44 W Power, 120 V, 0.54 A, 60 Hz, 125 to 150 psi, Motor Speed Rating: 1590 to 4830 rpm, 3/4 to 1-1/2 in Connection, 1 ph, 36 to 230 deg F, Cast Iron, 6-3/8 in H x 6 in W

Features

• BIO Barrier® protects the circulator from system contaminants
• SureStart®, a Taco exclusive feature, is your no-callback safety net, it automatically purges air and unblocks the pump to keep it trouble-free
• Convenience-The 007e makes your job easier
• Dual electrical knock-outs
• 6 in stranded wire leads for easy wiring and Double Insulated
